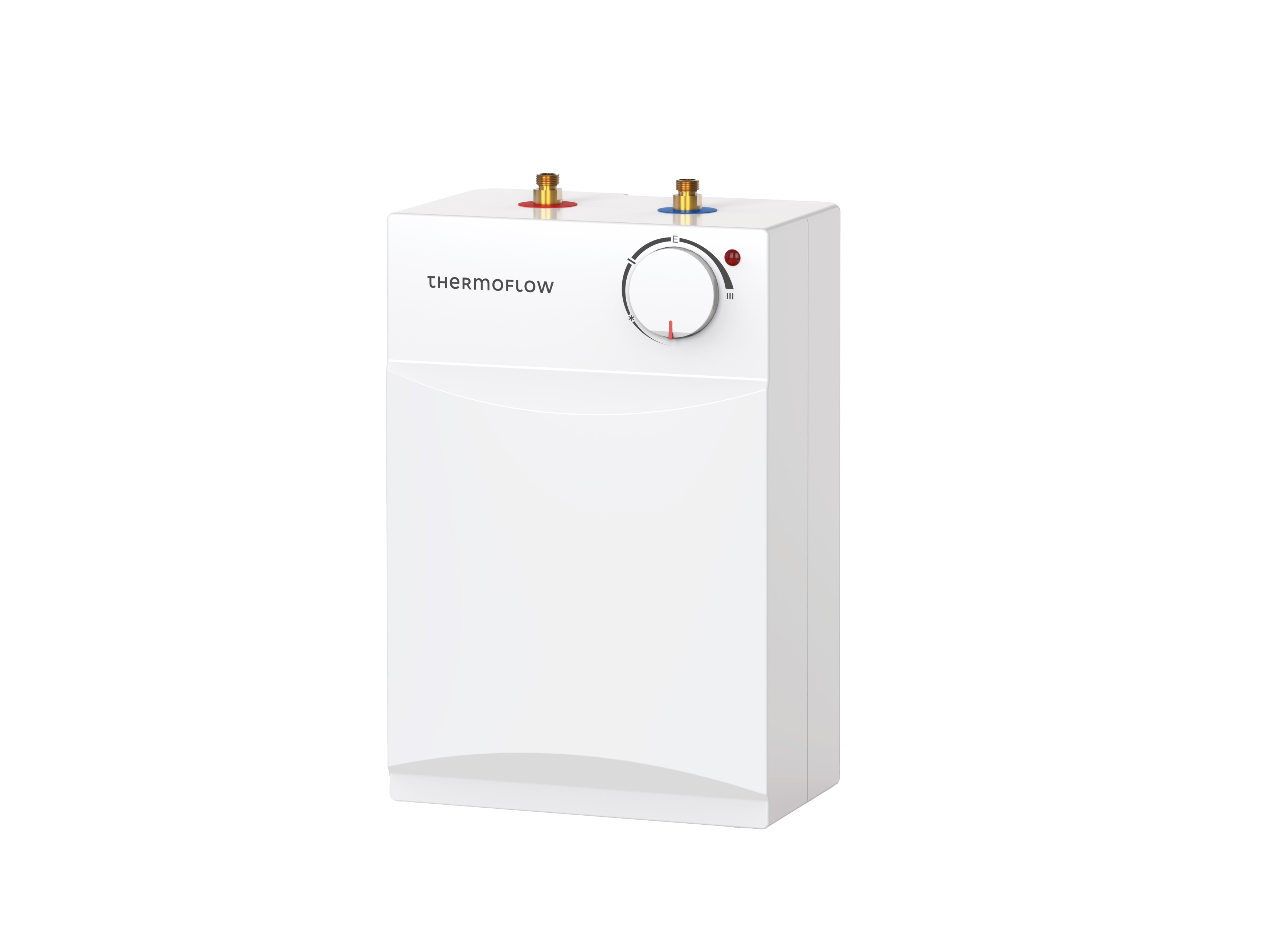

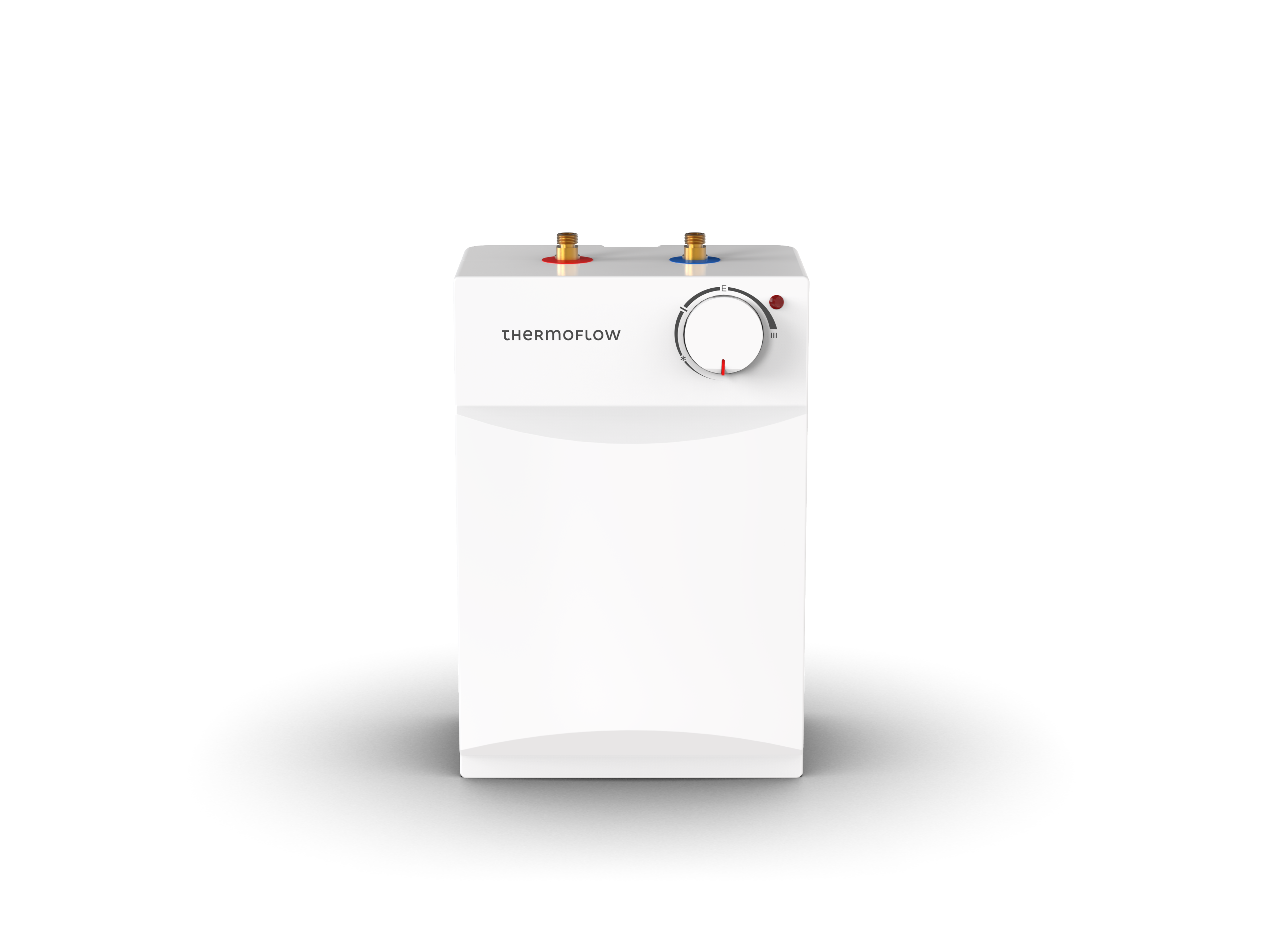

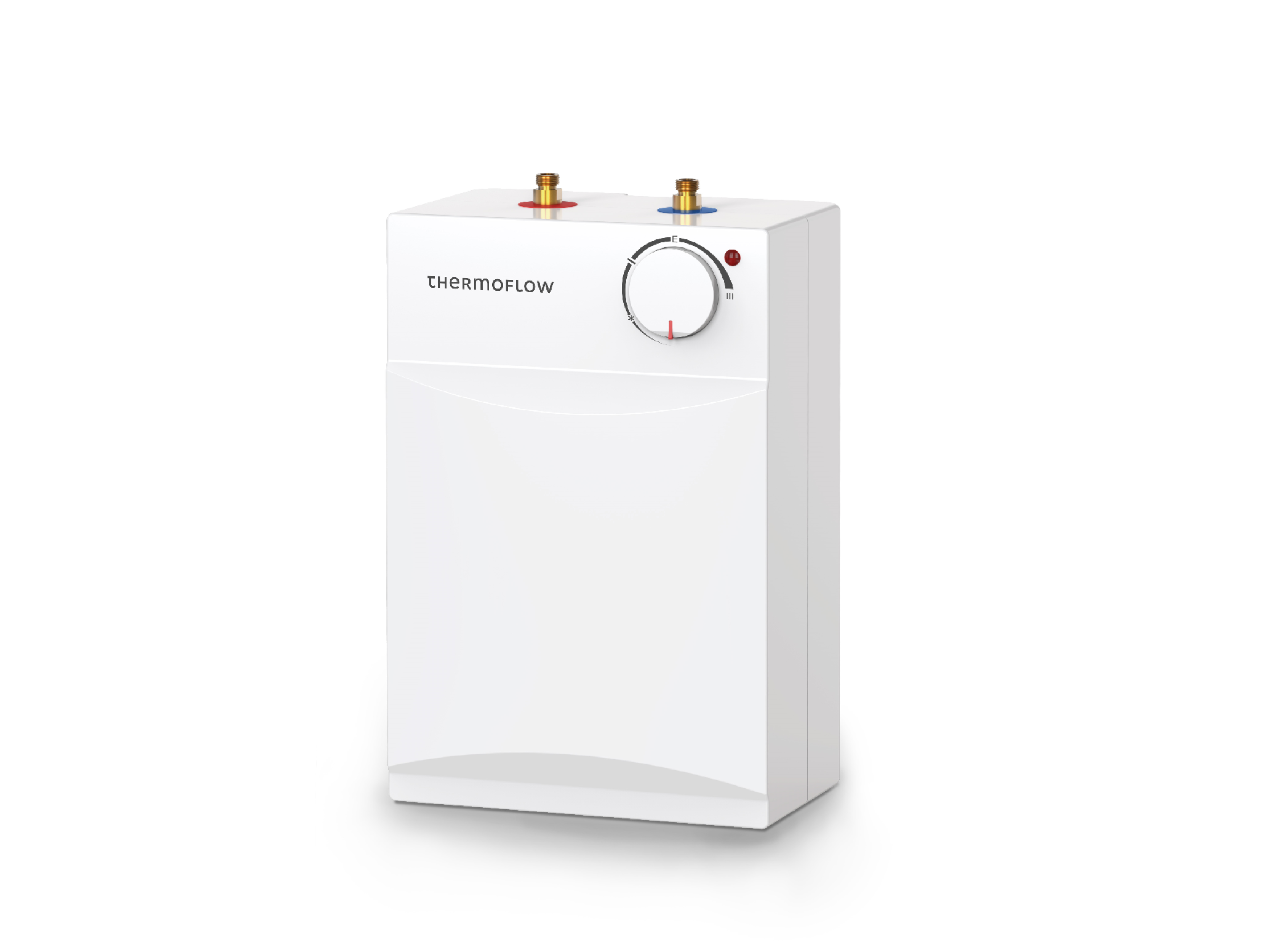

thermoflow undersink unit undersink boiler 5 l hot water unit + fitting 2 KW
Product number:
118271143
Manufacturer:
Thermoflow
EAN:
4262376919140
Manufacturer product number:
UT 5 + Qmix 700
Product information "thermoflow undersink unit undersink boiler 5 l hot water unit + fitting 2 KW"
- UT 5:

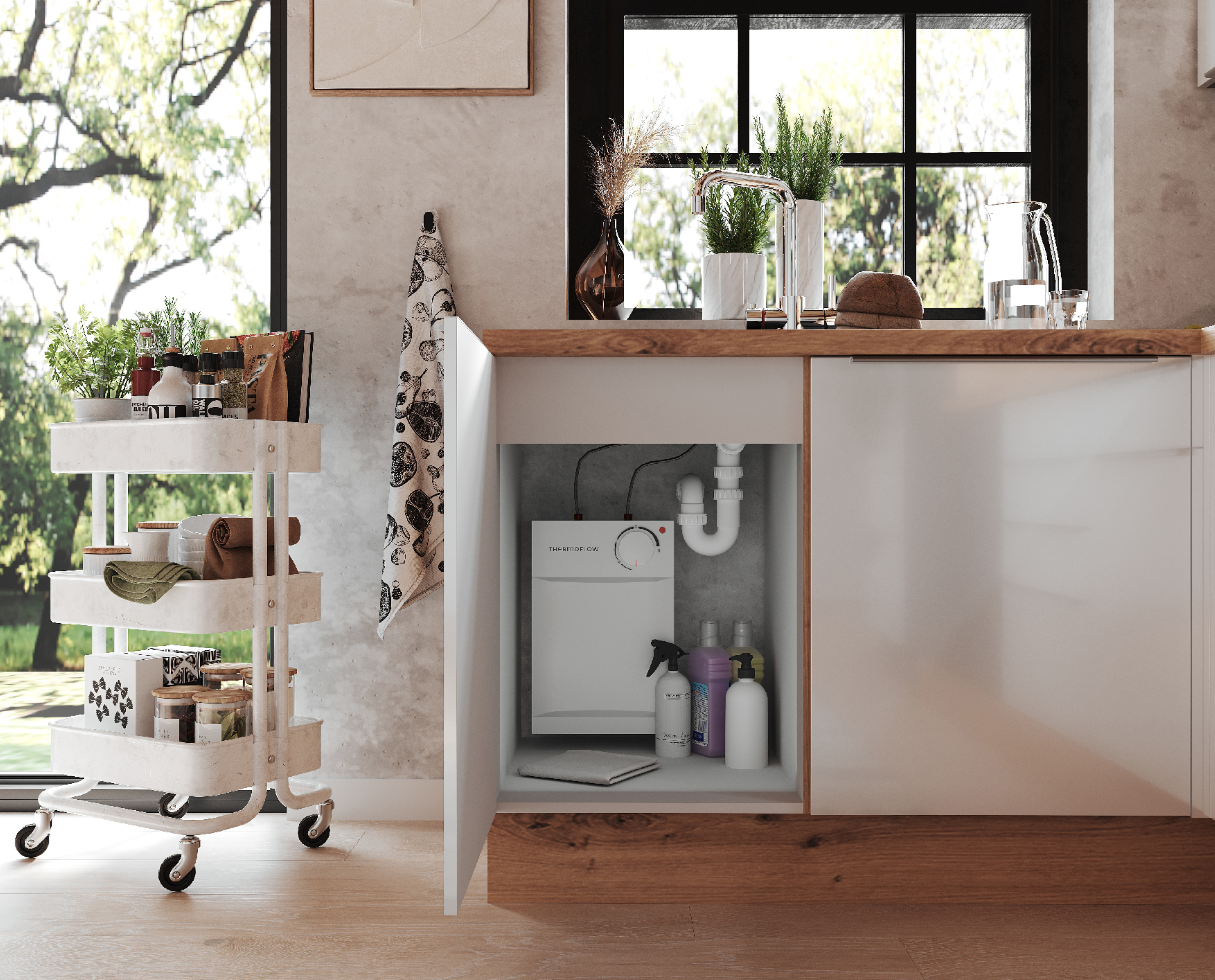

- Undercounter storage tank for economical comfort requirements, suitable for hand wash basins and kitchen sinks.
- Temperature control by thermostat up to max. 75°C.
- Open (pressureless) installation only with low-pressure fittings.
- Technical data:
- Weight / with water filling 3.22 kg / 8.22 kg.
- Volume 5 litres
- Energy efficiency class: A
- Energy flow in Watt 2000
- Voltage in Volt 230 ~
- Heating time up to 75°C 12 minutes
- Energy consumption (kW/24 hrs.) 0,28
- Internal water pressure (bar) 0
- Degree of protection against humidity IP 24
- Dimensions: HxWxD 40 x 27 x 18 cm excl. connections
- Tested by KEMA according to DVGW guidelines
- Average values Basis DIN 44532
- Qmix 700
- Low-pressure single-lever mixer with swivel spout
- colour: chrome
- replaceable cartridge
- weight 1,48 kg
- ATTENTION !!!
- Before start-up, the boiler must be filled with cold water!
- Venting through cold water inlet.
- New with bi-metal failure fuse
- Brass connections
Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)
Achtung: Nicht für Kinder unter 3 Jahren geeignet.
Konformitätserklärung
CE_Konformitaetserklaerung_UT5-OT5.pdf
Installations- und Montageanleitung
UT5_Manual.pdf
Properties "thermoflow undersink unit undersink boiler 5 l hot water unit + fitting 2 KW"
| Breite: | 27 |
|---|---|
| Modellname: | UT 5 +Qmix 700 |
