respekta kitchen unit island kitchen built-in kitchen block 310 cm oak grey
%
a
a+++
d
Inselhaube
e
a
g
Geschirrspüler vollintegriert
f
a
g
Kühlschrank KS.88.4
a
a+++
d
Einbaubackofen autark
€3,704.05*
% €7,459.00* (50.34% saved)Available, delivery time: 15-20
Product number:
160149456
Manufacturer:
Respekta
EAN:
4260515339262
Manufacturer product number:
RP310IEGC
Product information "respekta kitchen unit island kitchen built-in kitchen block 310 cm oak grey"
- Highlights of the Premium kitchen unit:
- Ergonomic working height of 91 cm
- Premium high gloss fronts
- Oven set incl. air circulation function (ready to plug in)
- Autarkic glass ceramic hob 77 cm with touch sensor
- All hinges and pull-outs have the soft-close function

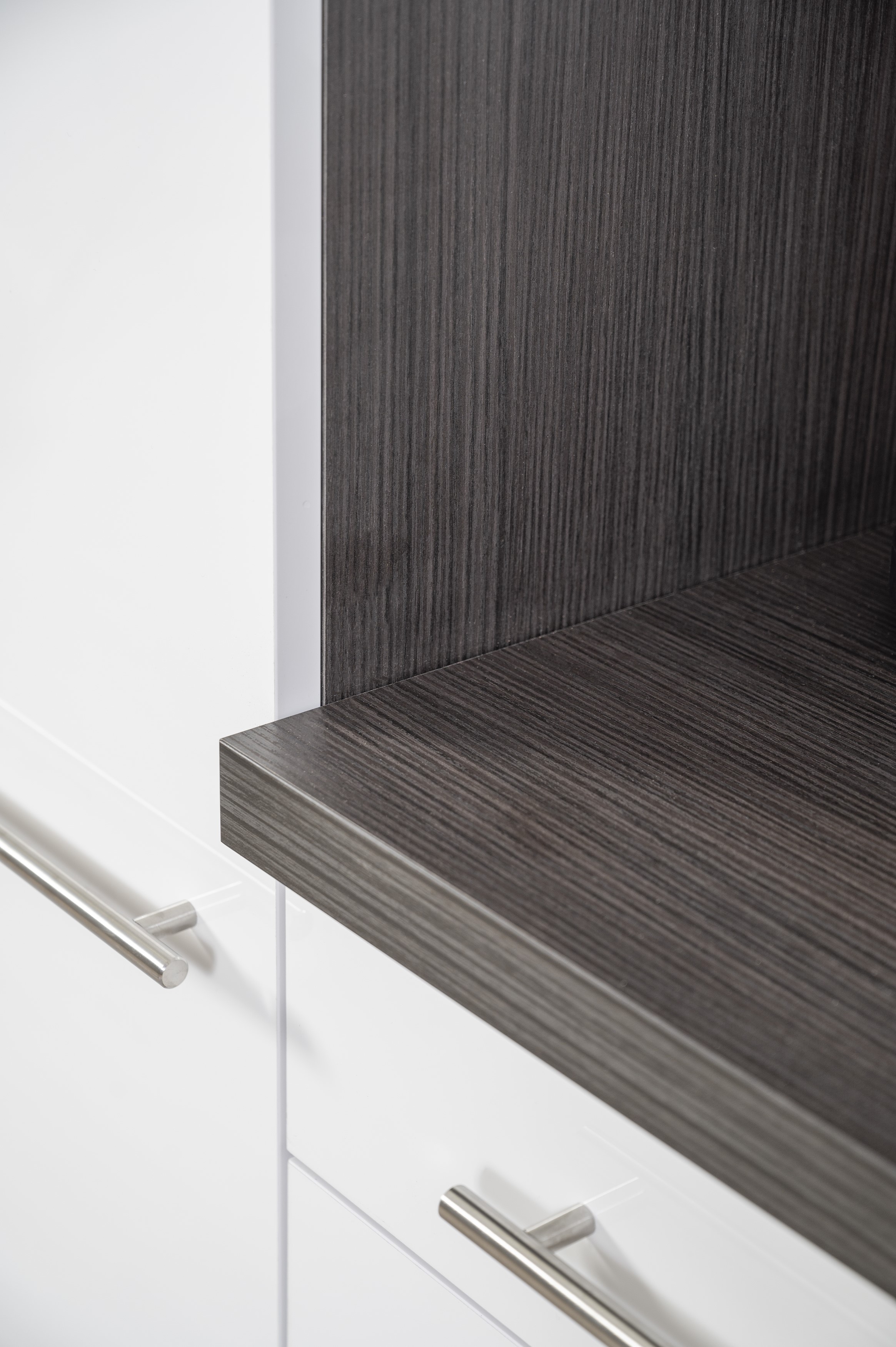

- 38 mm worktop
- Kitchen block can be assembled on the left or right

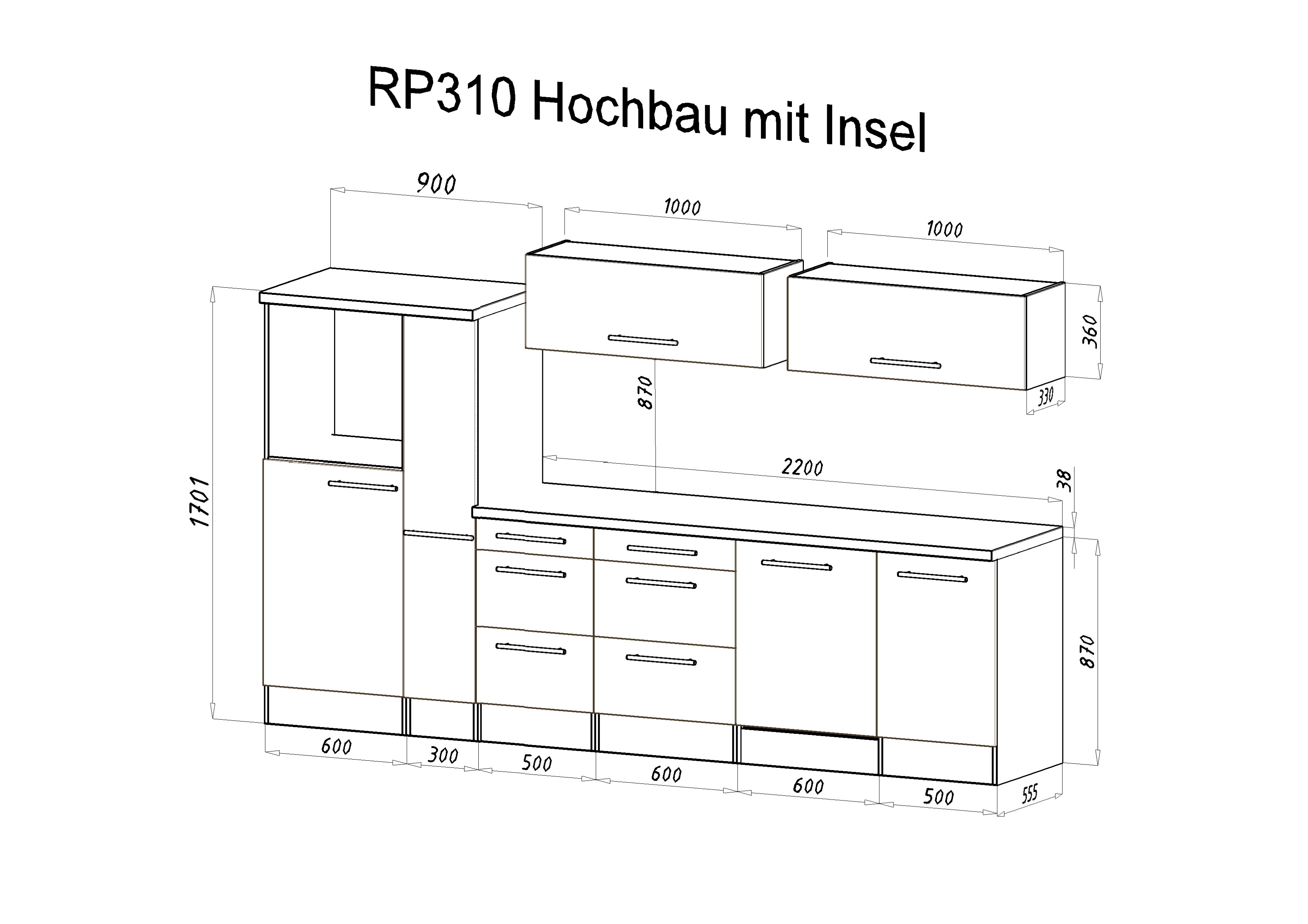

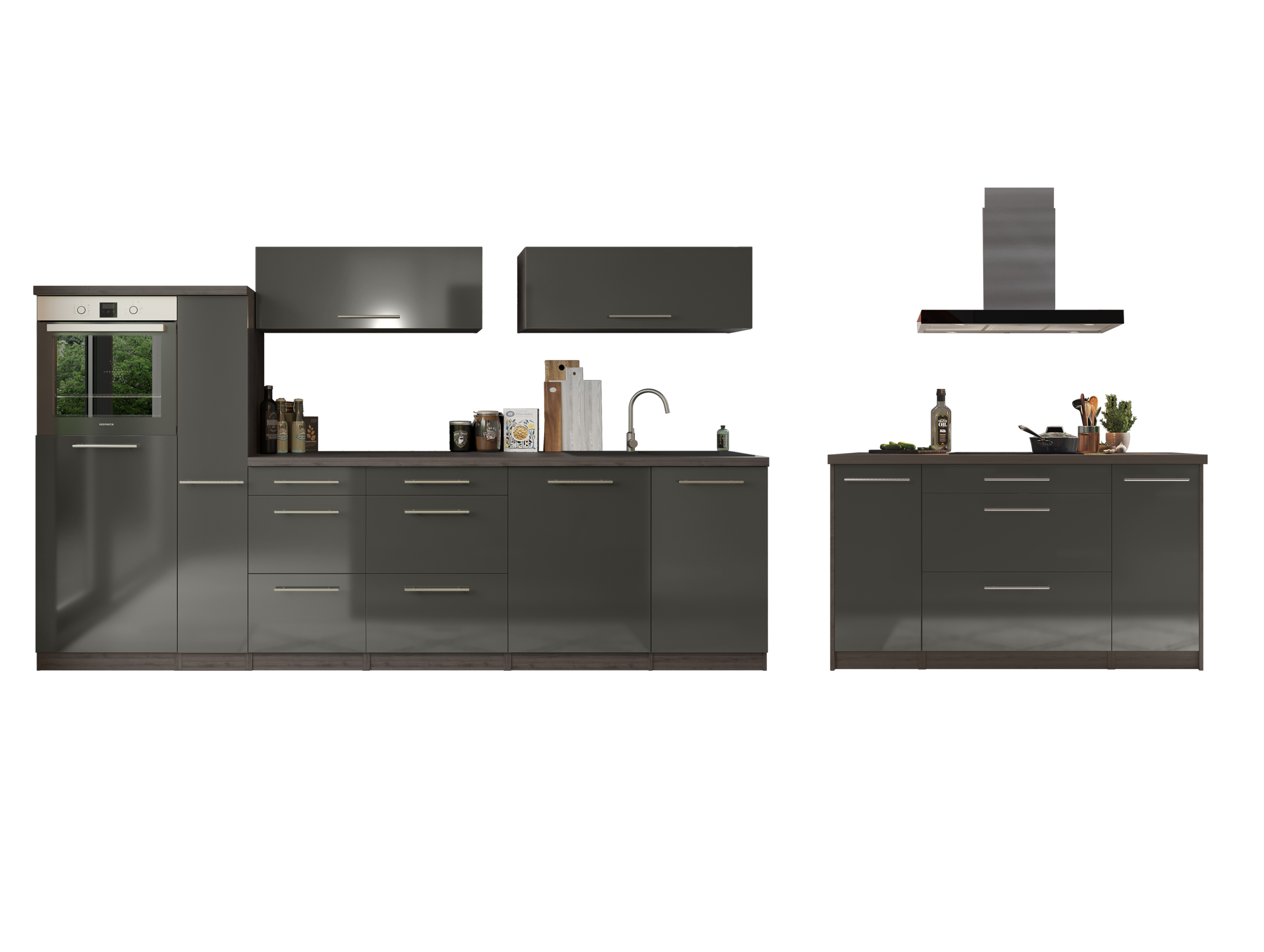

- Kitchen block consists of:
- Built-in oven autarkic, energy efficiency class A
- glass ceramic hob autarkic 77 cm, frameless with touch sensor
- Headless extractor hood 60 cm suitablefor exhaust and circulating air
- Built-in refrigerator incl. 4* freezer compartment
- Fully integrated dishwasher 60 cm
- Stainless steel sink (without tap hole, siphon and tap)
- 1 base cabinet with drawer 50 cm
- 1 tall cabinet for refrigerator and oven 60 cm
- 1 base cabinet with drawers 60 cm
- 1 sink base cabinet 50 cm
- 1 niche 60 cm for dishwasher
- 1 apothecary cupboard 30 cm

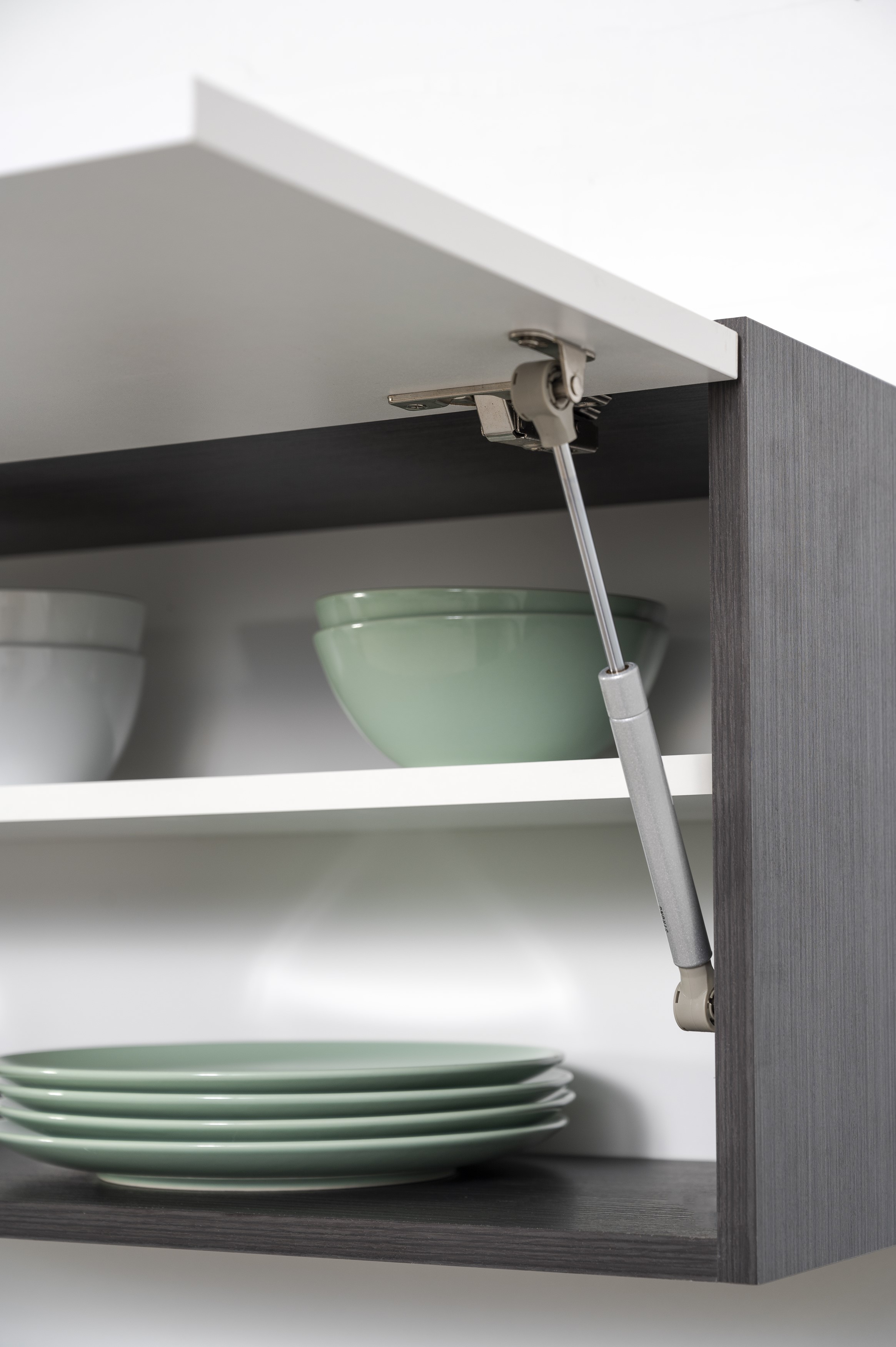

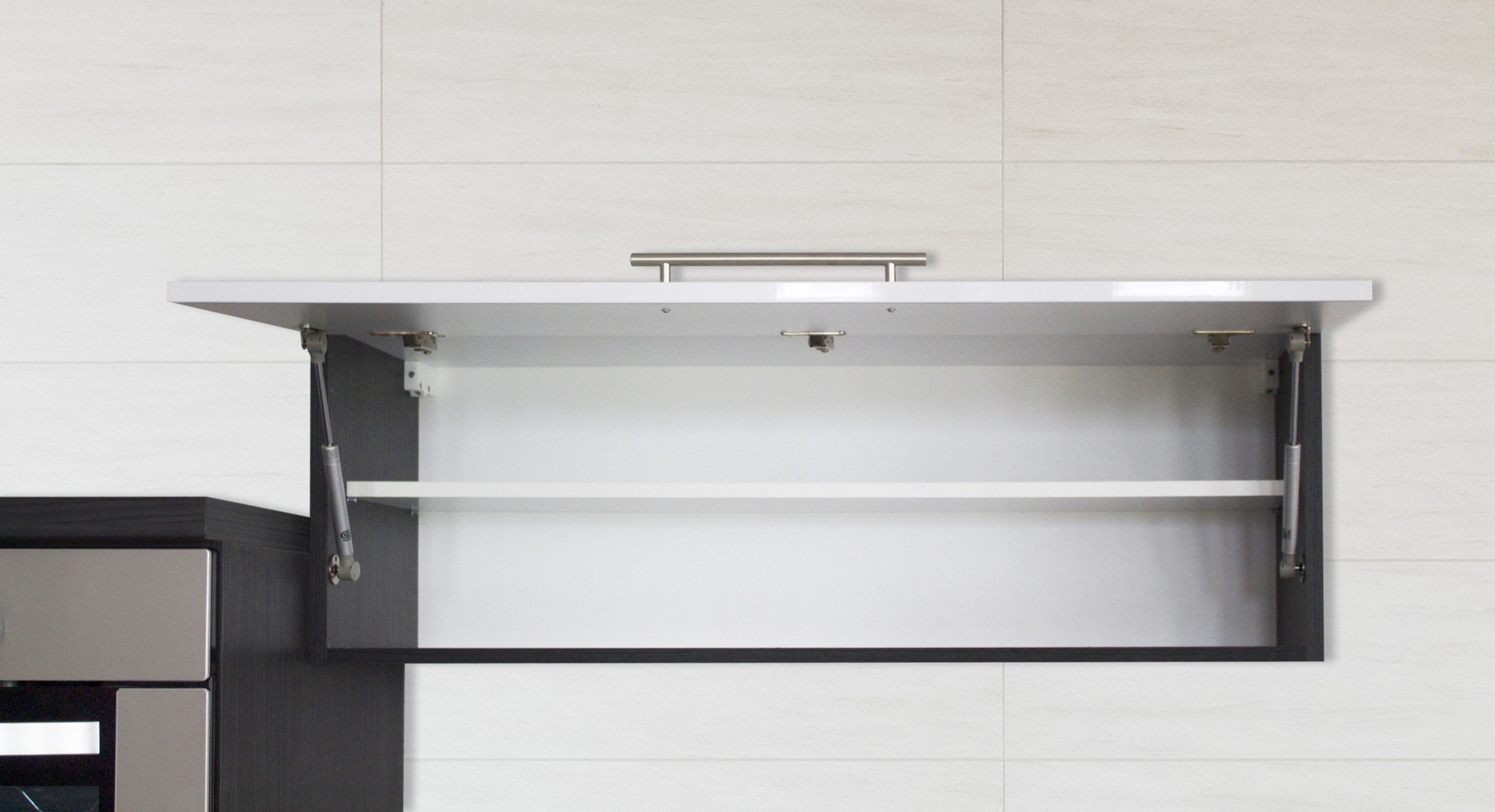

- 2 wall cupboards 100 cm with lift door
- 1 worktop 220 cm, without cut-outs, 38 mm thick

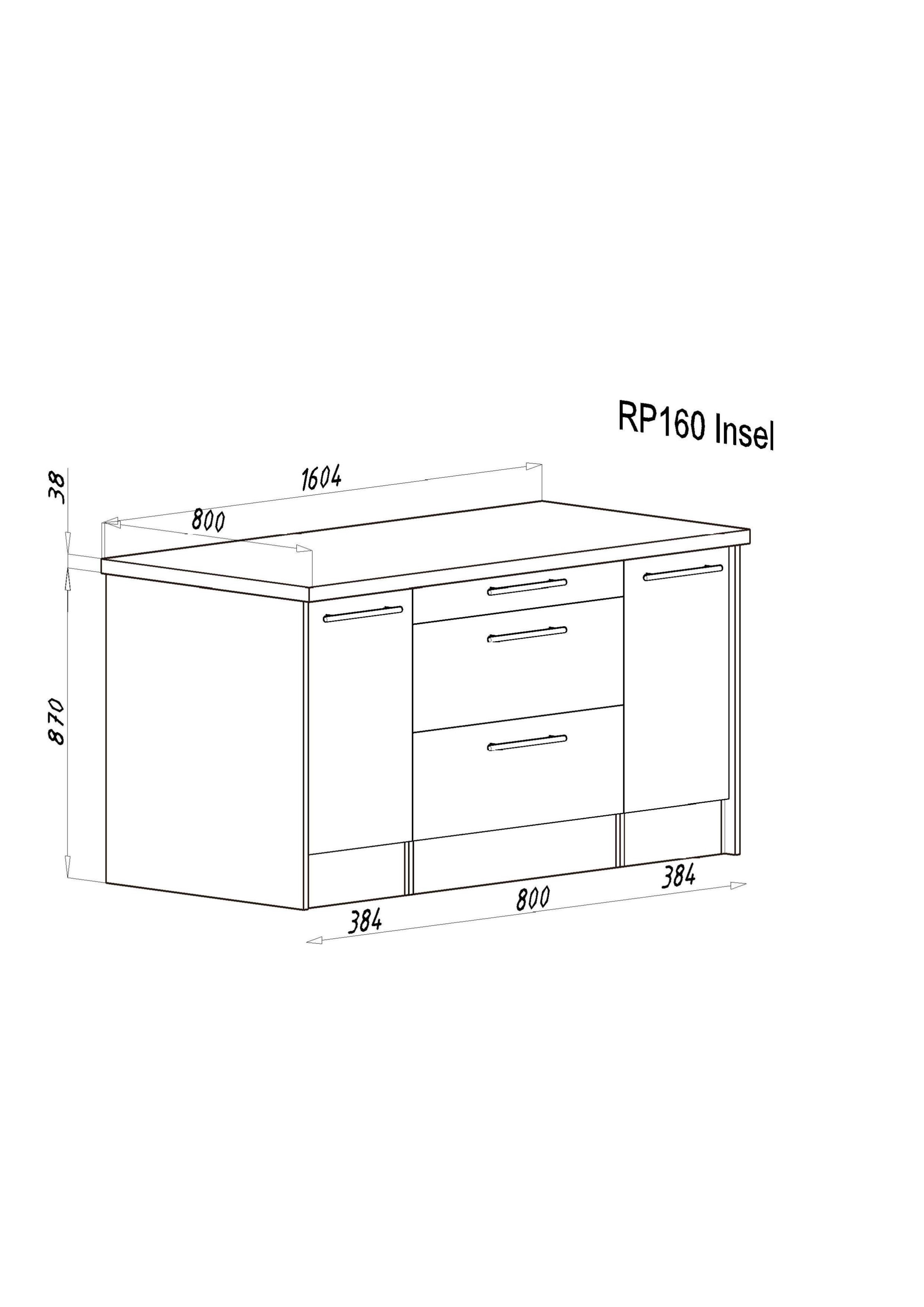

- 1 island unit 16 cm consisting of:
- 1 base unit with drawer 80 cm
- 2 base units with hinged doors 40 cm
- 1 island unit 160 cm
- 1 worktop 160 cm, without cut-outs, 38 mm thick
- Body grey oak imitation, fronts high gloss grey
- Metal handles - stainless steel look
- Ergonomic working height of 91 cm
- All pull-outs with soft-close hinges, all runners in high-quality metal design

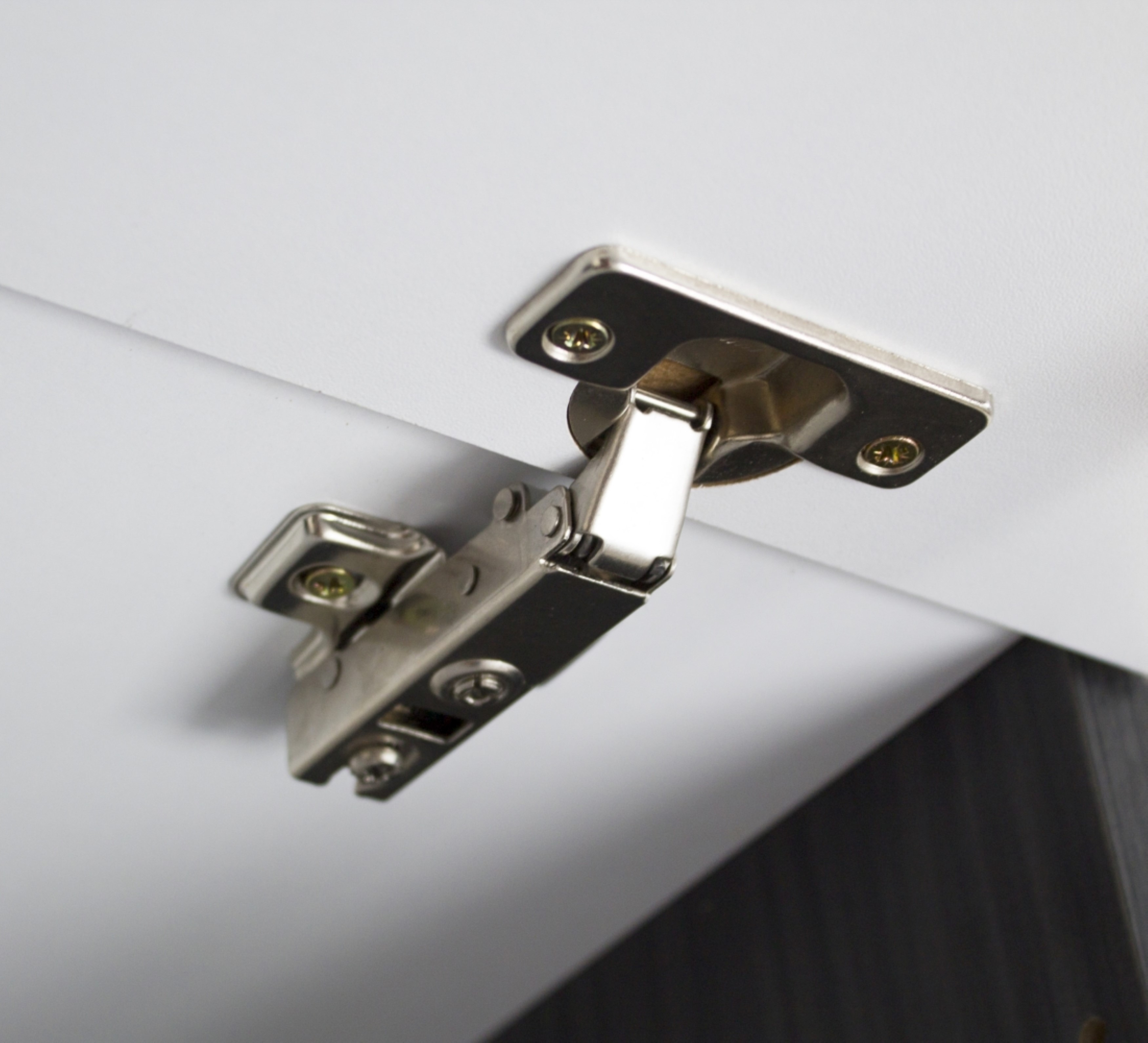

- All door hinges with soft-close function (except refrigerator)
- Kitchen can be assembled on alternate sides

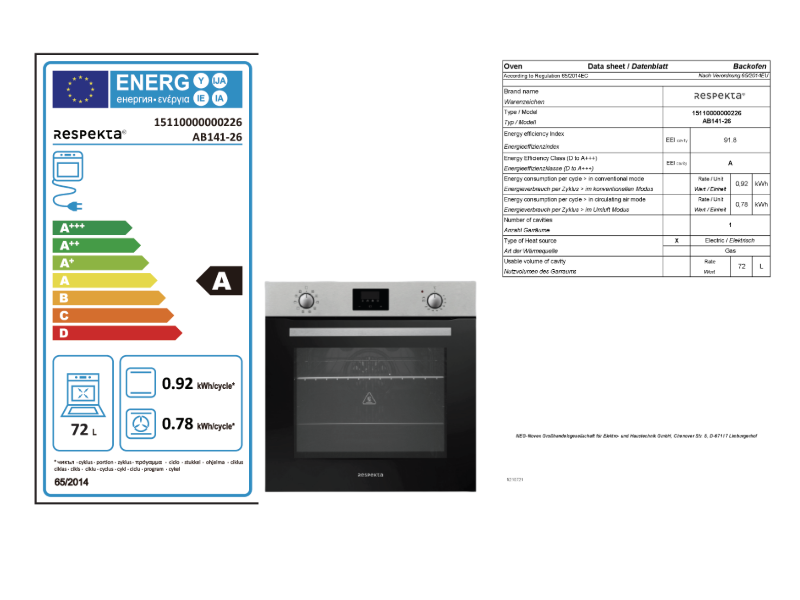

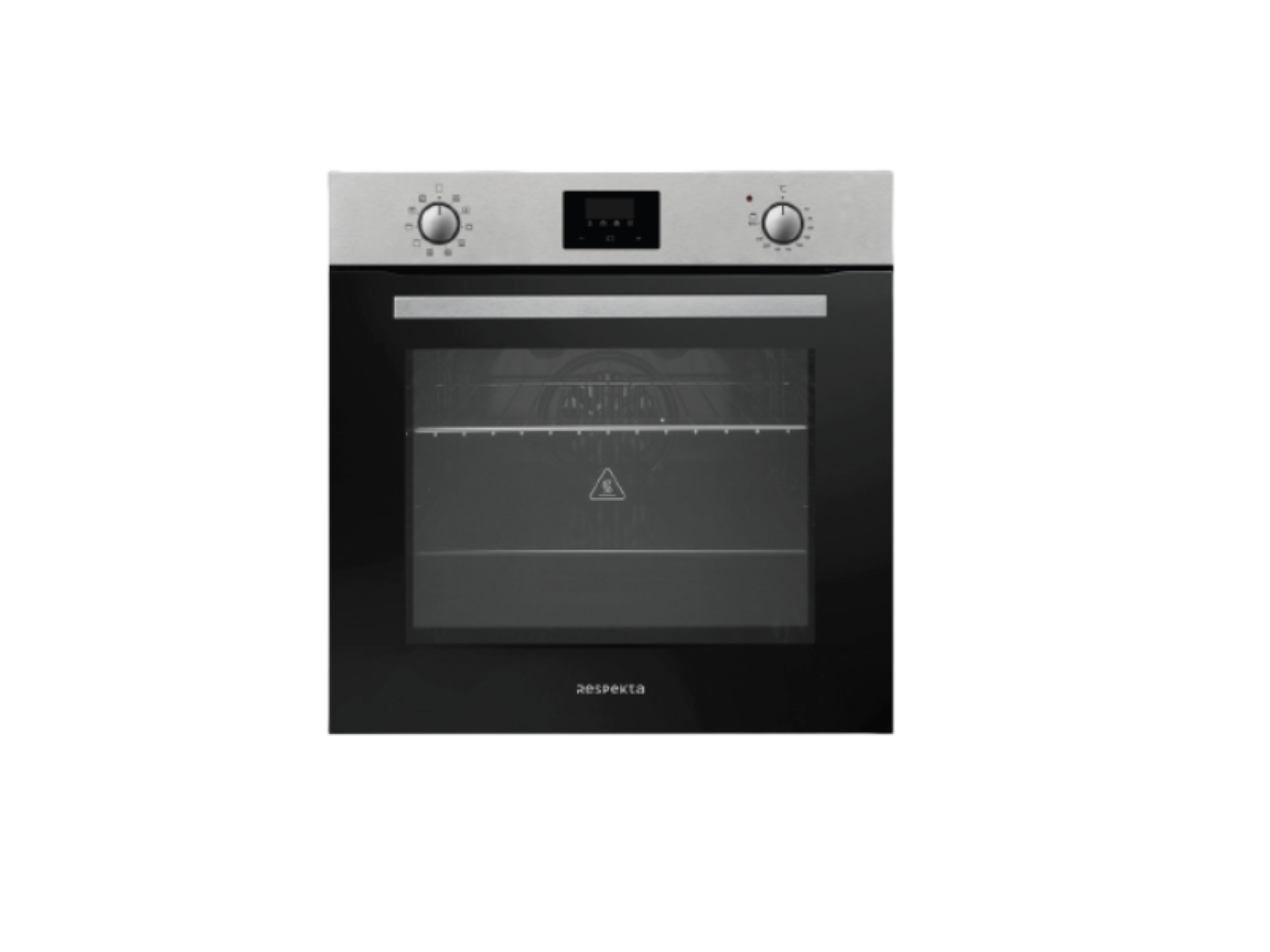

- Built-in oven autarkic:
- 9 heating modes (defrost function, top/bottom heat, half grill, conventional grill, convection grill, bottom heat + ventilation, pizza function, hot air, intensive baking (top/bottom heat + ventilation)
- Double glazed door
- Retractable stainless steel knobs
- Fully programmable LED timer
- 2 telescopic pull-outs in the baking chamber
- Usable volume of the oven cavity: 56 litres
- Energy efficiency class A
- Operating voltage: 220-240 V / 50 Hz
- Connected load: 3350 W
- Energy consumption / day conventional: 0,79 kWh
- Accessories: 1 x enamelled baking tray, 1 x baking rack
- Oven is delivered ready to plug in (cable length 130 cm)

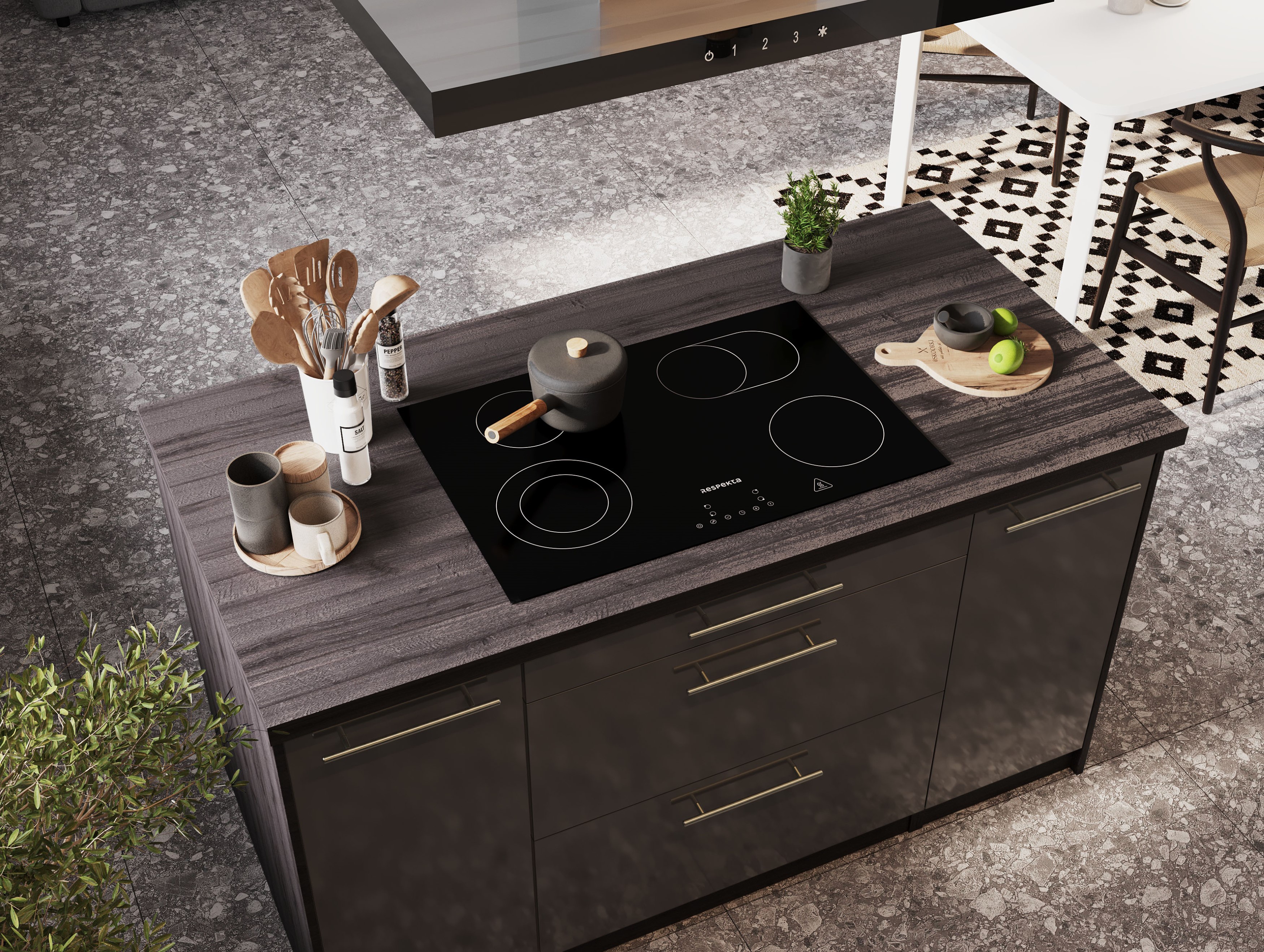

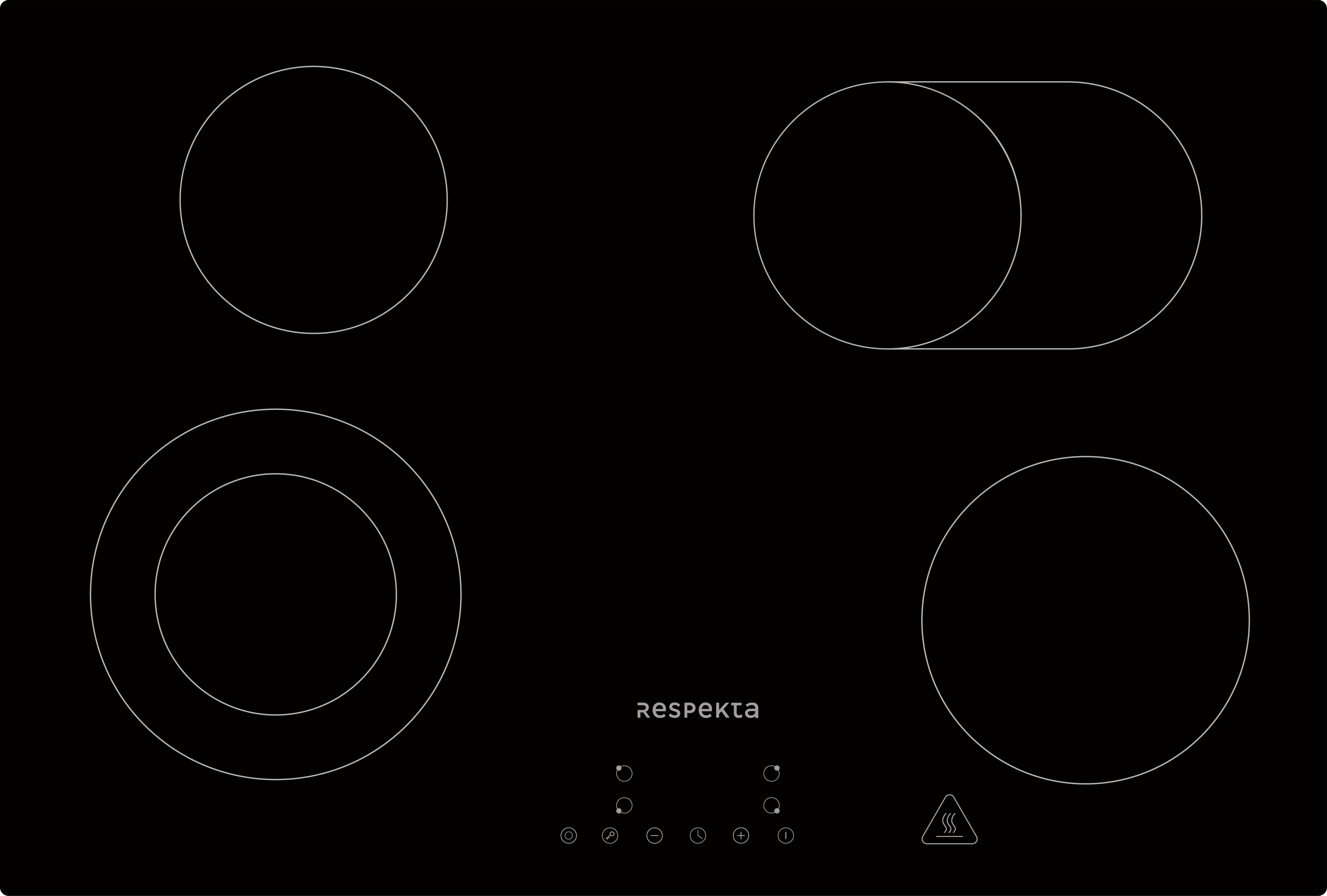

- Frameless glass ceramic hob 77 cm autarkic:
- Frameless glass ceramic hob 77 cm
- Power (W) / diameter (mm) of cooking zones:
- 1 x 2300 W / 230 mm
- 1 x 1200 W / 165 mm
- 1 x 1100/2000 W / 165-270 mm
- 1 x 1800 W / 200 mm
- Heating levels per cooking zone: 9
- Maximum power: 7300 W
- Input voltage: 220-240 V or 400 V
- Timmer: 99 minute
- Control panel : Touch Control
- Display / residual heat indicator: 4/4
- Installation dimensions (W x D): 56 x 49 cm
- Cooktop is delivered including connection cable (without plug, 120 cm)
- Incl. automatic safety shut-off & child safety lock

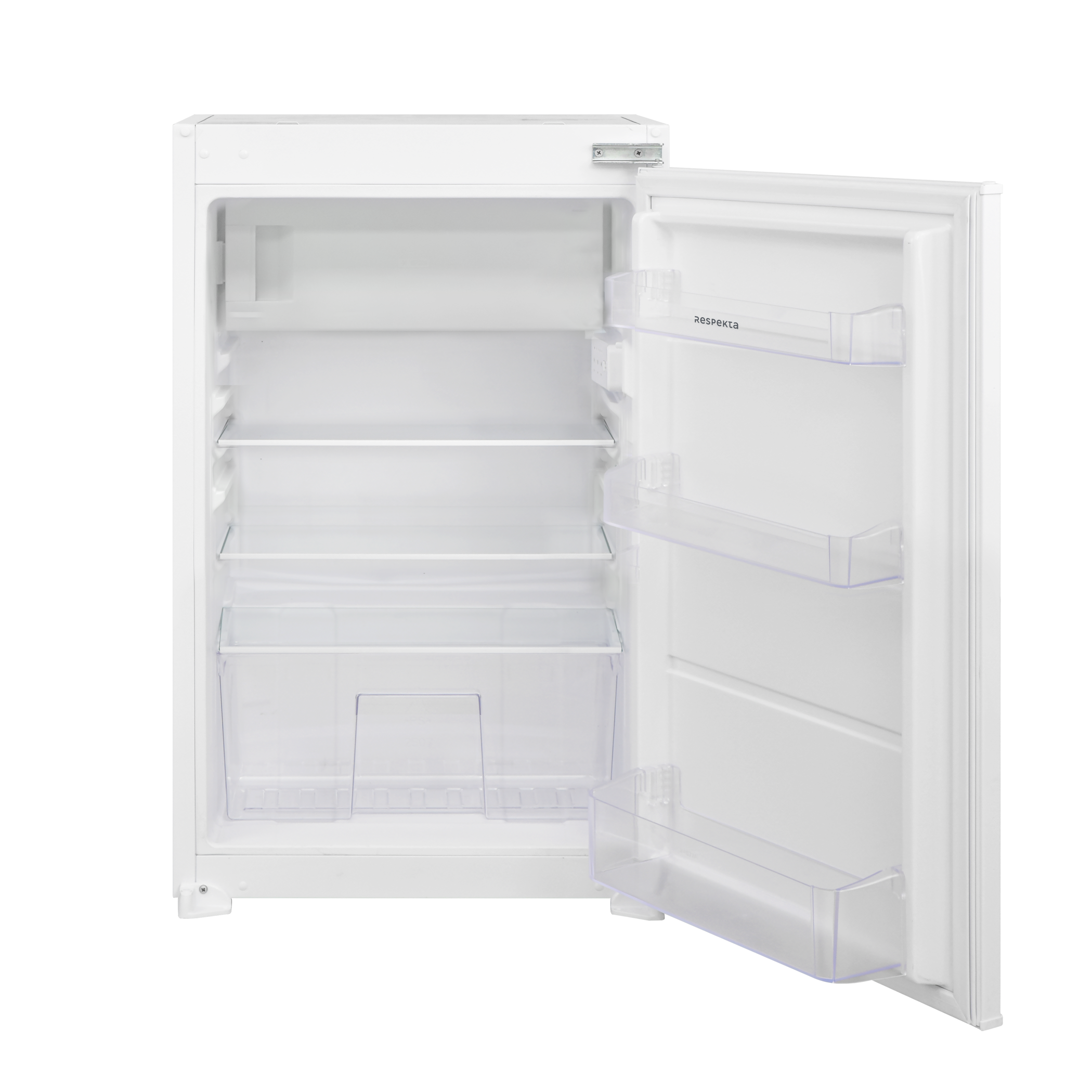

- Built-in refrigerator with 4* freezer compartment:
- Energy efficiency class: F
- Energy consumption per year: 185 kWh/year
- Usable capacity total: 121 litres
- Useful capacity cooling/freezing: 104 / 17 litres
- Star rating: 4****
- Climate class: N
- Noise emission: 38 dB(A)
- LED lighting in the refrigerator compartment
- Incl. drag hinges and exchangeable door hinge

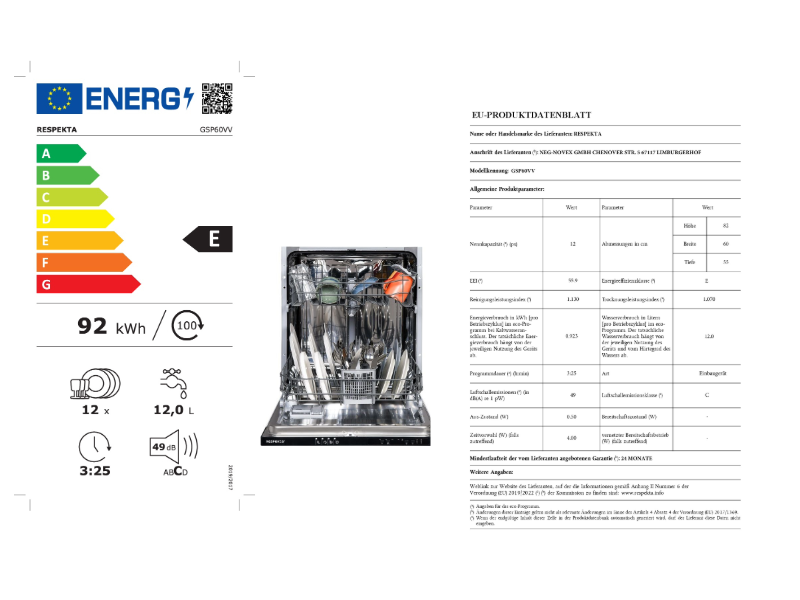

- Built-in dishwasher fully integrated:
- Energy efficiency class: E
- Drying efficiency class: A
- Annual energy consumption (280 cycles in standard programme): 92 kWh
- Control: Electronic
- Standard program: Eco 45°
- 6 programmes: Intensive, Universal, Eco, Glass, Short programme, 90 min. rinse cycle
- 5 rinse temperatures
- Height adjustable feet, 2 front, 1 rear
- Fully electronic and quiet, 2 spray levels, start time preselection, LED display
- 4 foldable cup holders, 1 cutlery basket

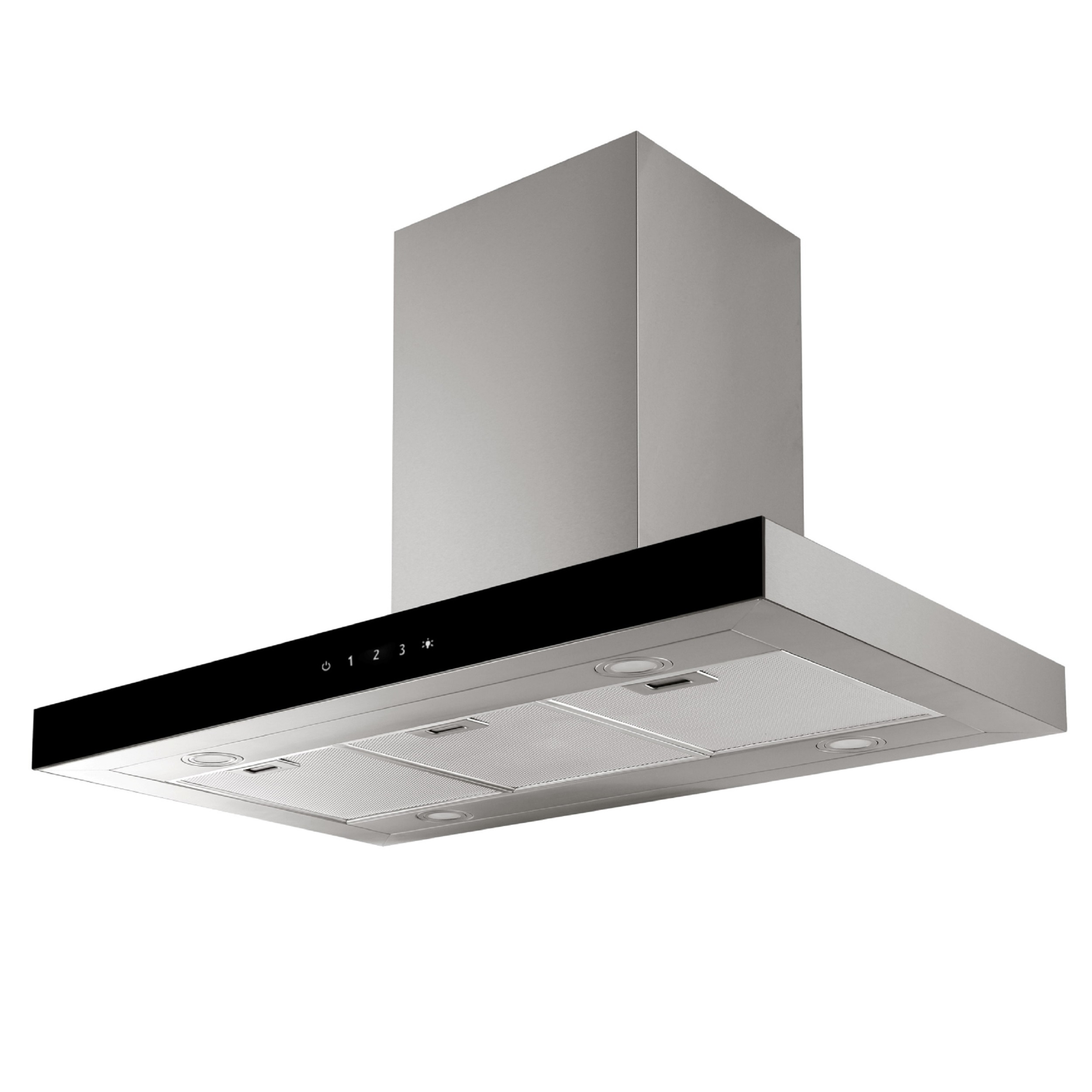

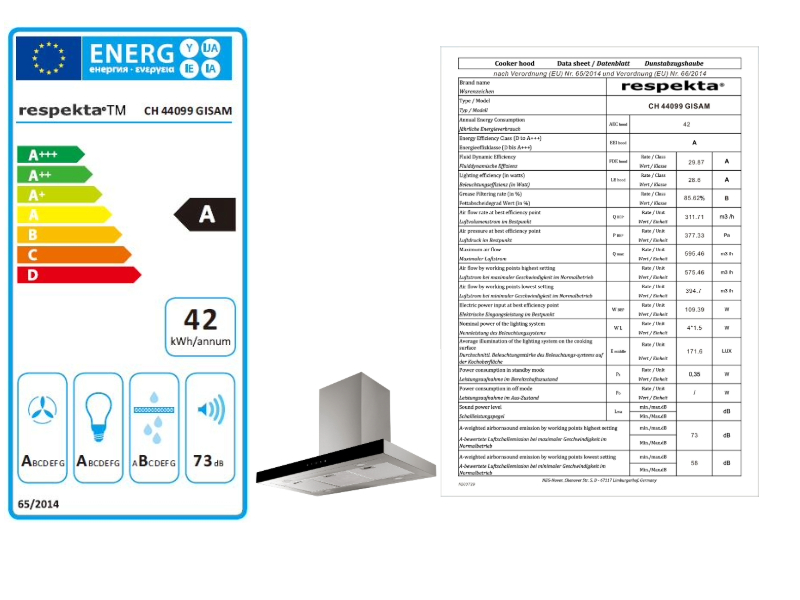

- Island hood 90 cm:
- Annual energy consumption: 42 kWh/year
- energy efficiency class: A
- Fluid dynamic efficiency class: A
- lighting efficiency class: A
- grease separation efficiency class: B
- Air flow at min./max. speed: 311.71 m³/h / 595.46 m³/h
- A-weighted airborne sound emission at min./max. speed: 58 dB / 73 dB
- Touch control
- Speed levels: 3
- Lighting max. 4 x 1.5 Watt LED
- Operating voltage/ frequency: 220-240 V / 50 Hz
- Connected load: 167 Watt
- Charcoal filter for recirculating air operation MIZ 1000, 2 pieces (available at an extra charge, EAN: 4260515337749)

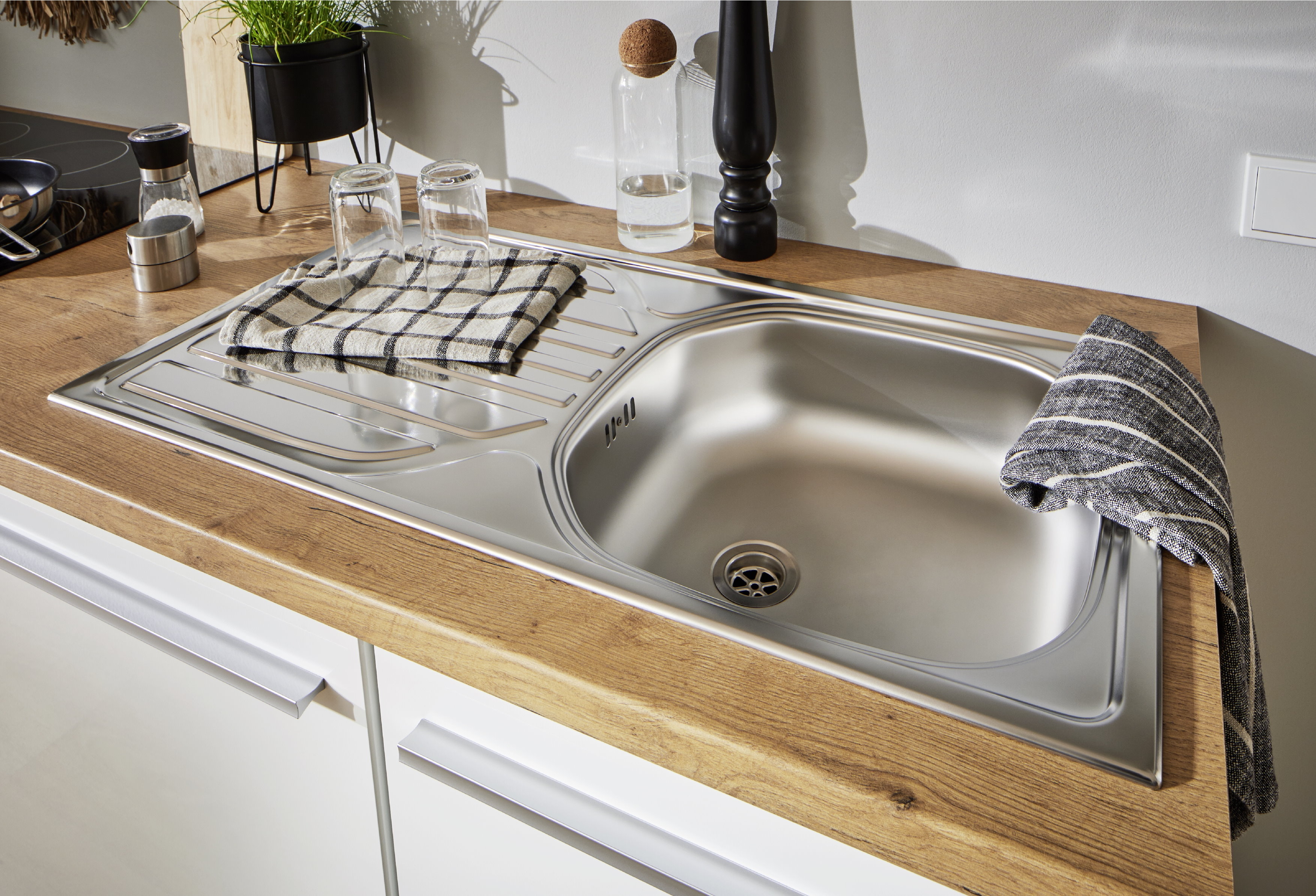

- Built-in sink:
- Stainless steel sink
- 860 x 435 mm
- incl. drain and overflow fitting installation (without fitting)
- Delivery and assembly:
- Delivery is free to the curb with telephone notification by the shipping company! For an additional charge, the kitchen can be removed to the point of use. With interest you announce yourselves please with us
- A kitchen assembly can be booked optionally in addition!
- Kitchen is delivered disassembled and can be assembled alternately!
Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)
NEG Novex GmbH
Chenover Straße 5
67117 Limburgerhof, Deutschland
06232298500
info@neg-novex.de
Achtung: Nicht für Kinder unter 3 Jahren geeignet.
Konformitätserklärung
CE_Konformitaetserklaerung_Amanda.pdf
Installations- und Montageanleitung
RP310E_Installation.pdf
Properties "respekta kitchen unit island kitchen built-in kitchen block 310 cm oak grey"
| Ausstattung: | Backofen oben, Dunstabzugshaube, Geschirrspüler, Kühlschrank |
|---|---|
| Breite: | 310 |
| Form: | Inselküche |
| Frontfarbe: | Grau |
| Kochfeld: | CH7700-78 |
| Korpusfarbe: | Eiche Grau |
| Modellname: | Amanda |
| Stil: | Premium |
