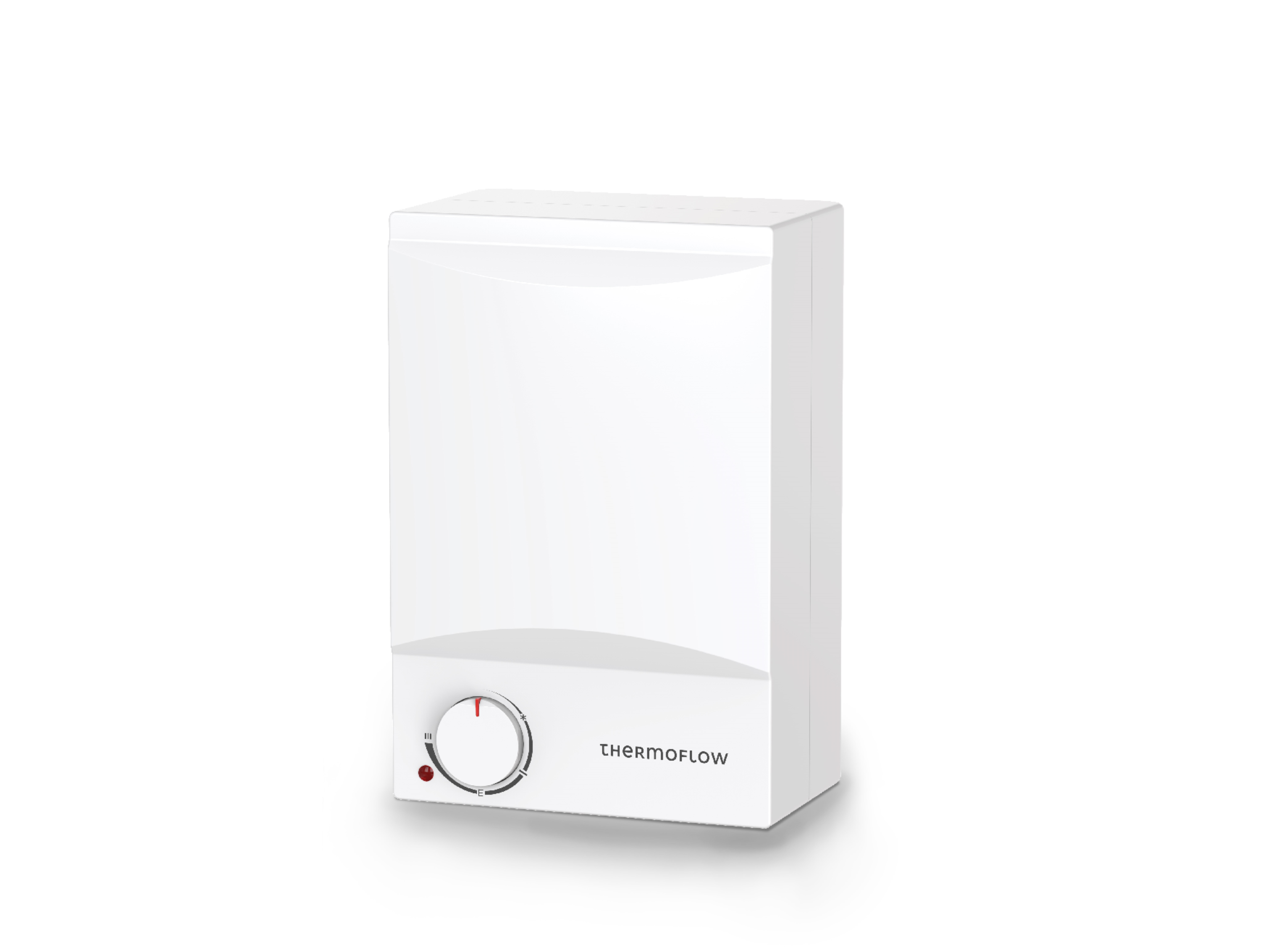

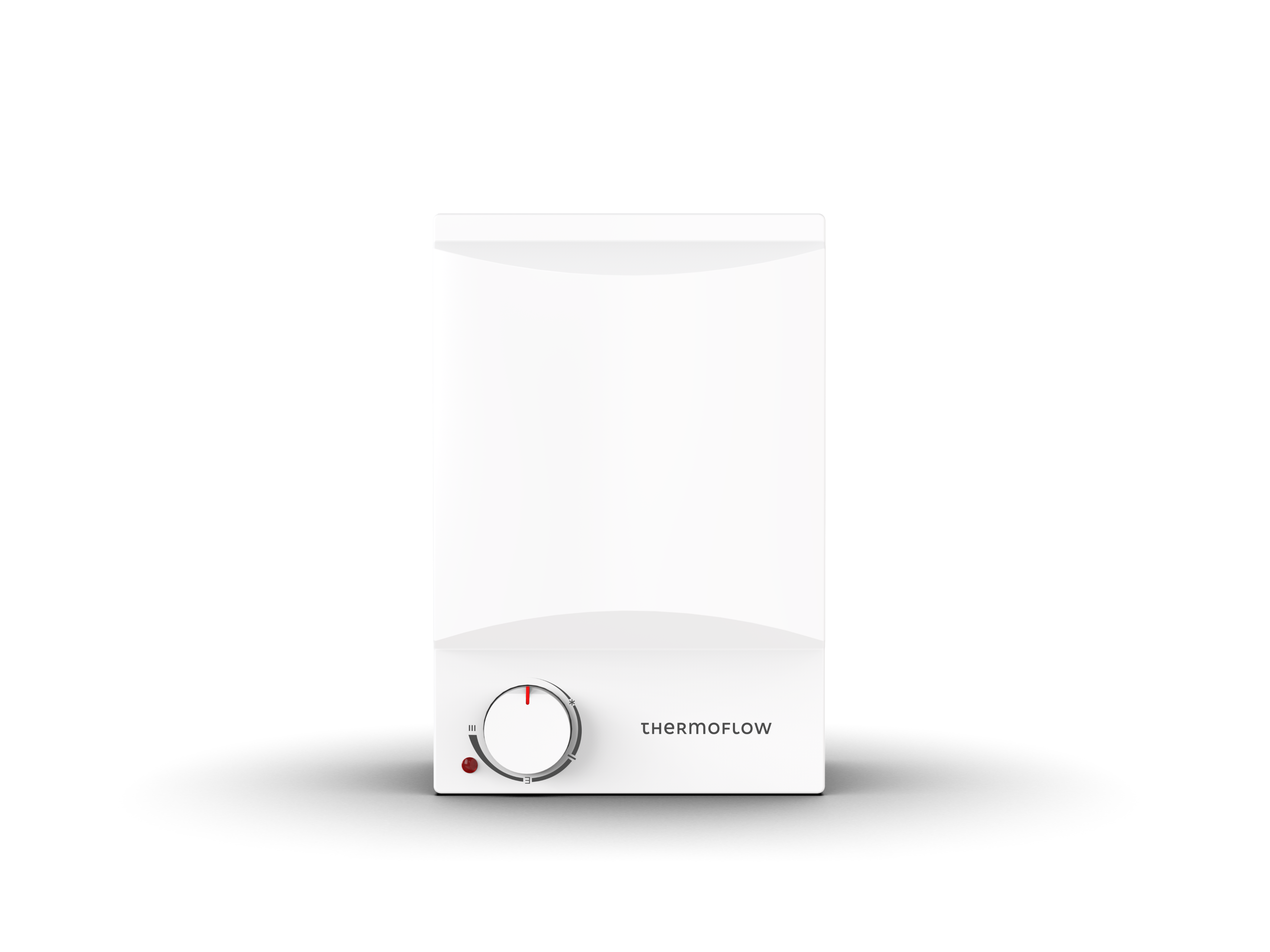

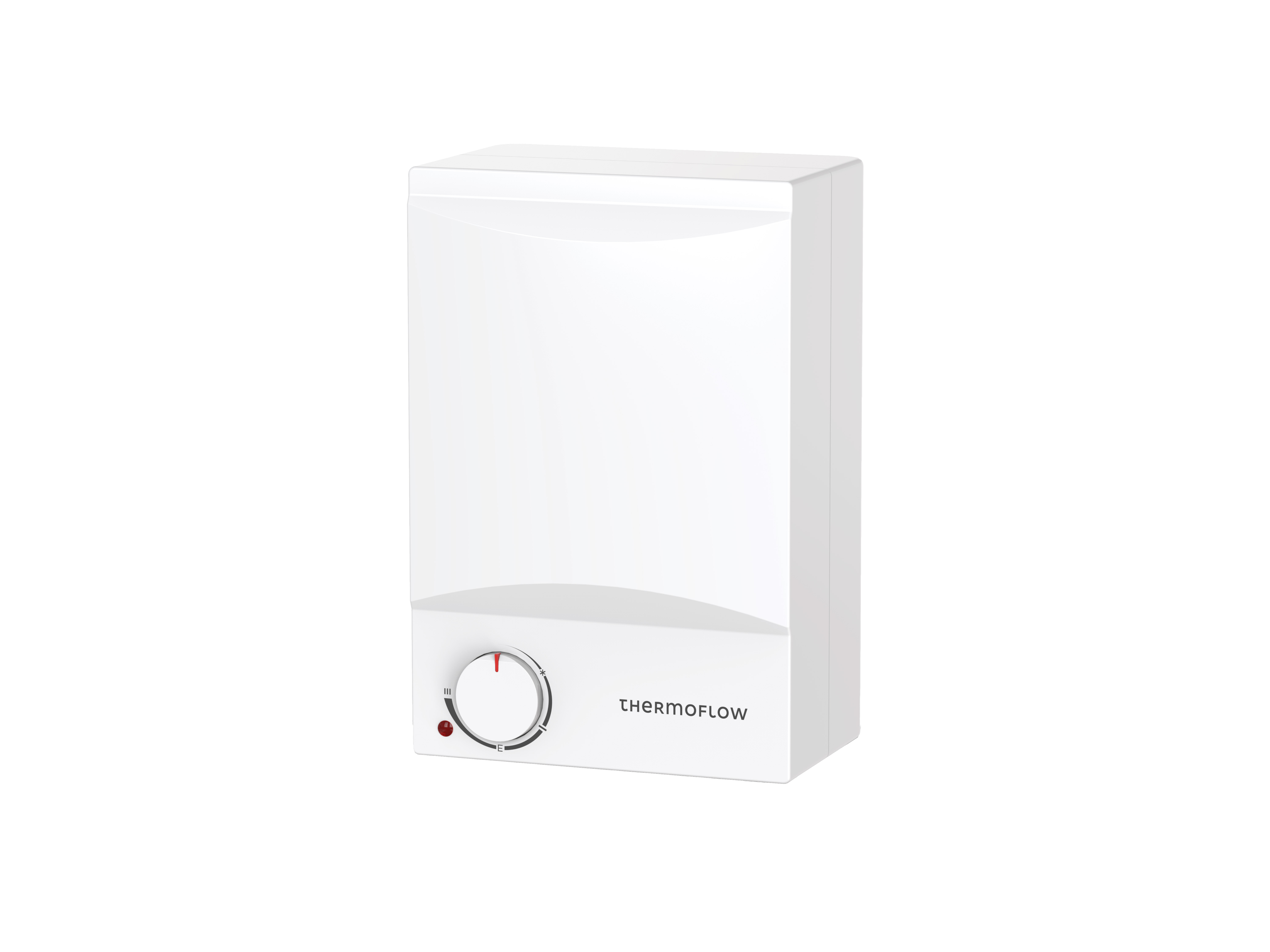

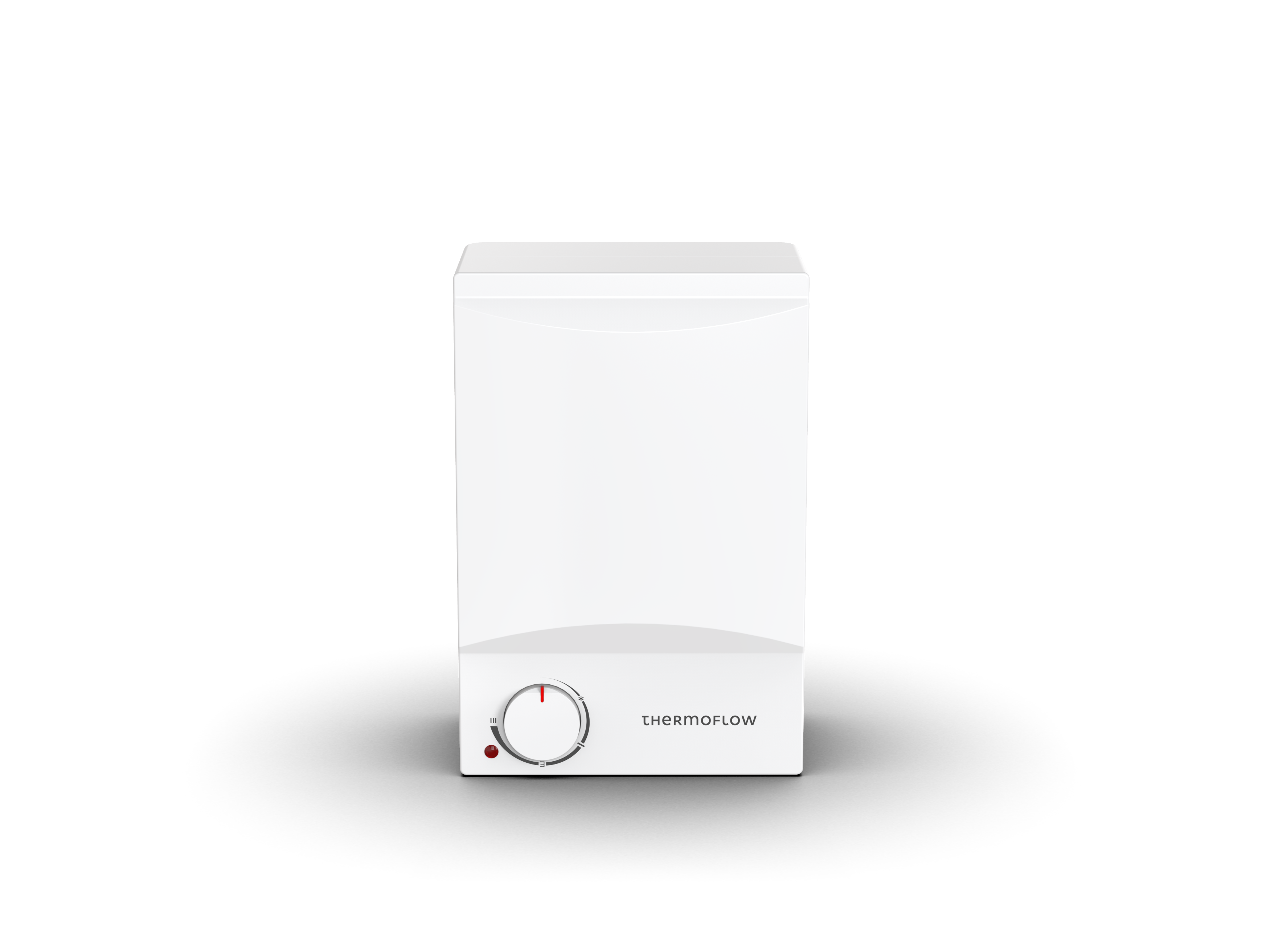

Thermoflow over-table boiler Hot water tank 5 L over-table boiler + fitting
%
Product number:
57192445
Manufacturer:
Thermoflow
EAN:
4260458242728
Manufacturer product number:
OT 5 + Qmix 10
Product information "Thermoflow over-table boiler Hot water tank 5 L over-table boiler + fitting"
- Technical specifications:
- Above table storage for economical comfort demands, suitable for hand wash basins
- and kitchen sinks.
- Temperature control by means of a thermostat up to max. 75 ° C.
- Open (pressureless) installation only with low pressure fittings.
- Technical specifications:
- Energy efficiency class: A
- Storage volume 5 liters
- Voltage in volts 230 ~ 50 Hz
- Temperature range: 35 - 75 °
- Annual electricity consumption: 72 kWh
- Daily electricity consumption: 0.197 kWh
- Design: open / pressureless
- Protection class: I.
- Flow rate: 5 (L / min.)
- Working pressure: 0 MPa
- Dimensions (HxWxD): 420 x 270 x 180 mm / 2.8 kg (without fittings)
- Material connection: brass
- Fitting QMIX 10:
- Low-pressure two-handle mixer tap
- Single hole system
- Stepless temperature control
- Color: chrome
- ATTENTION:
- Before commissioning, the boiler must be filled with cold water!
- Ventilation through cold water inlet.
Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)
NEG Novex GmbH
Chenover Straße 5
67117 Limburgerhof, DE
06232298500
info@neg-novex.de
Achtung: Nicht für Kinder unter 3 Jahren geeignet.
Konformitätserklärung
CE_Konformitaetserklaerung_UT5-OT5_combi.pdf
Installations- und Montageanleitung
OT5Combi_Manual.pdf
Properties "Thermoflow over-table boiler Hot water tank 5 L over-table boiler + fitting"
| Breite: | 27 |
|---|---|
| Modellname: | OT 5 + Qmix 10 |
