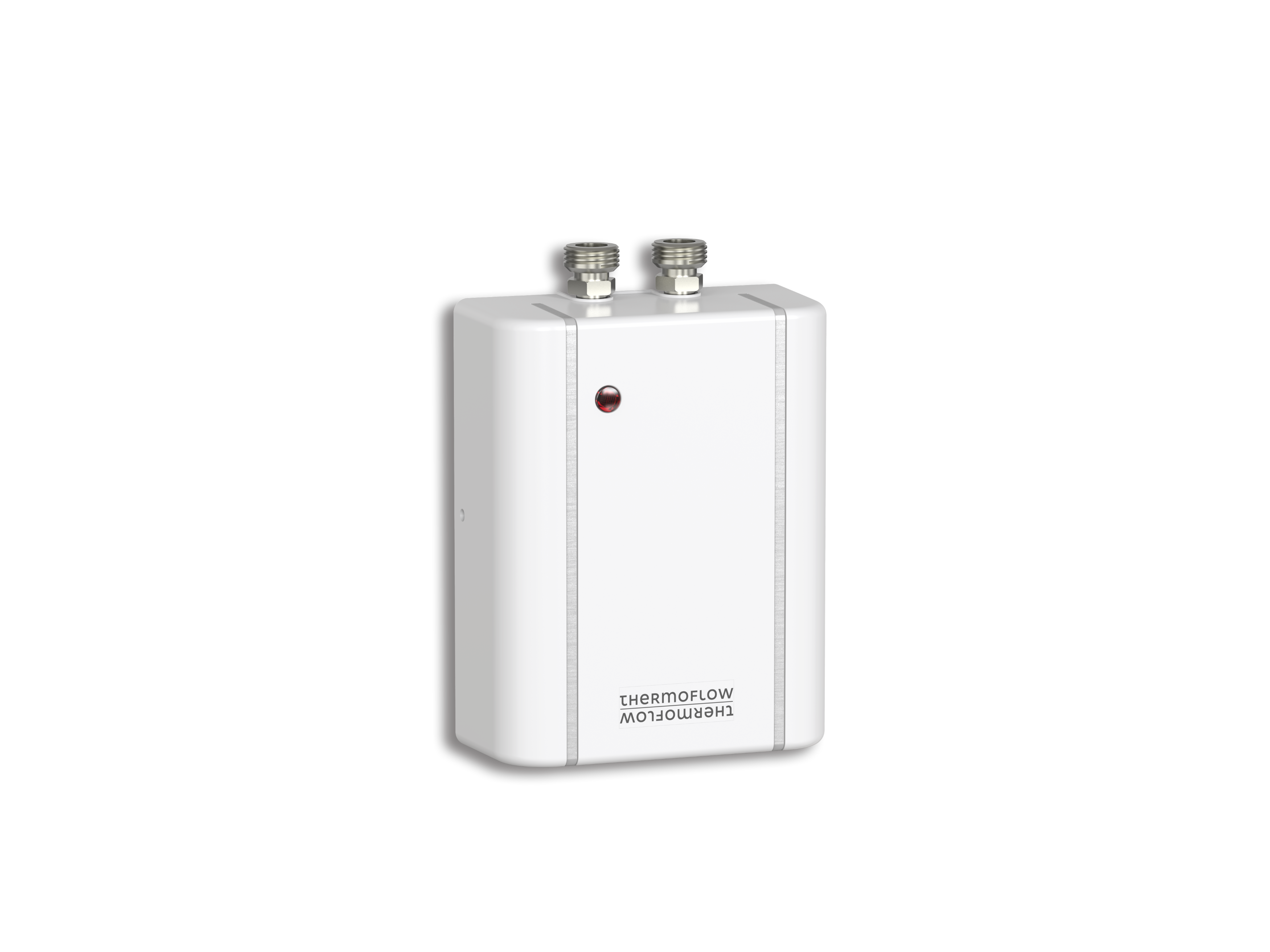

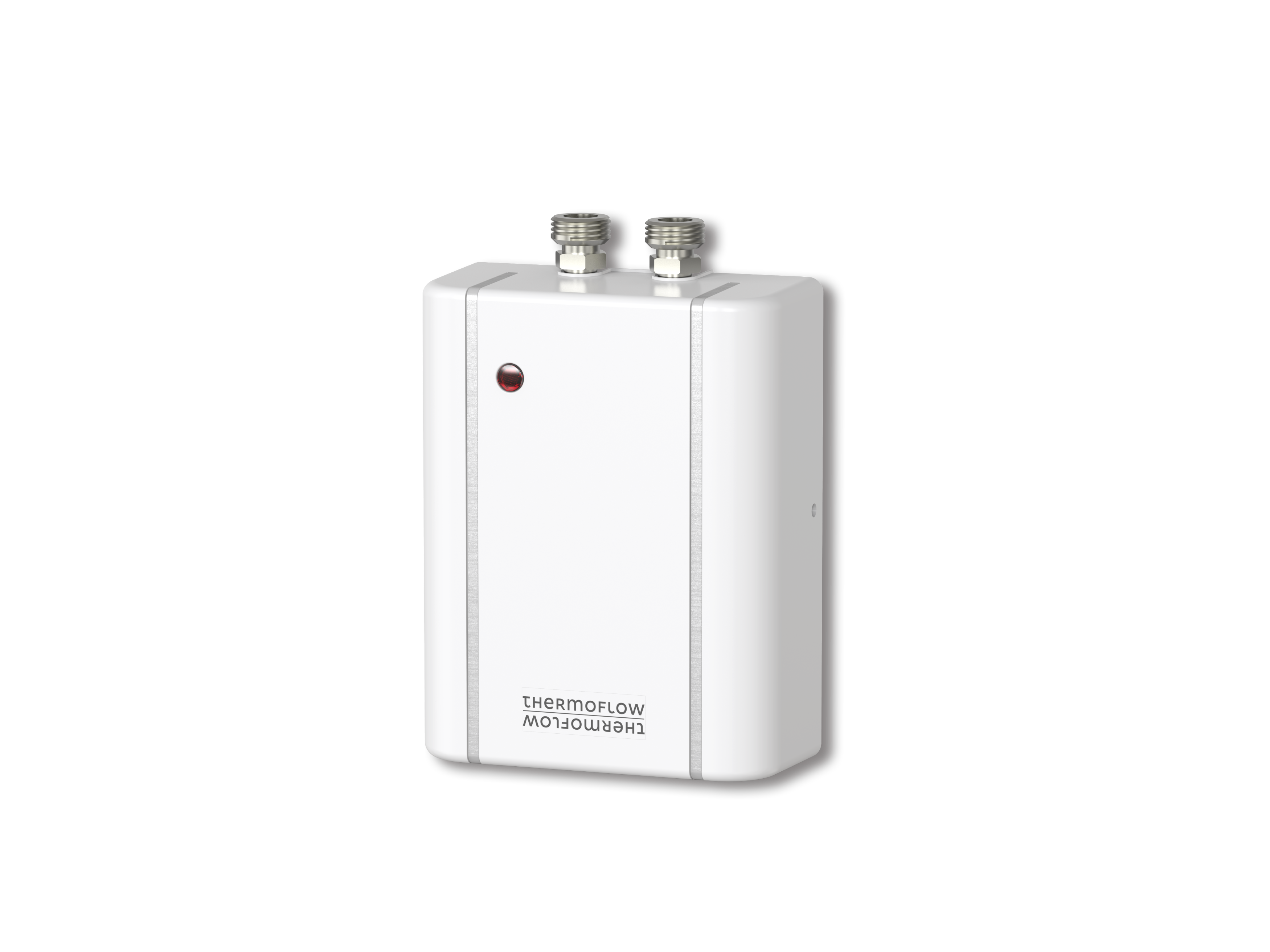

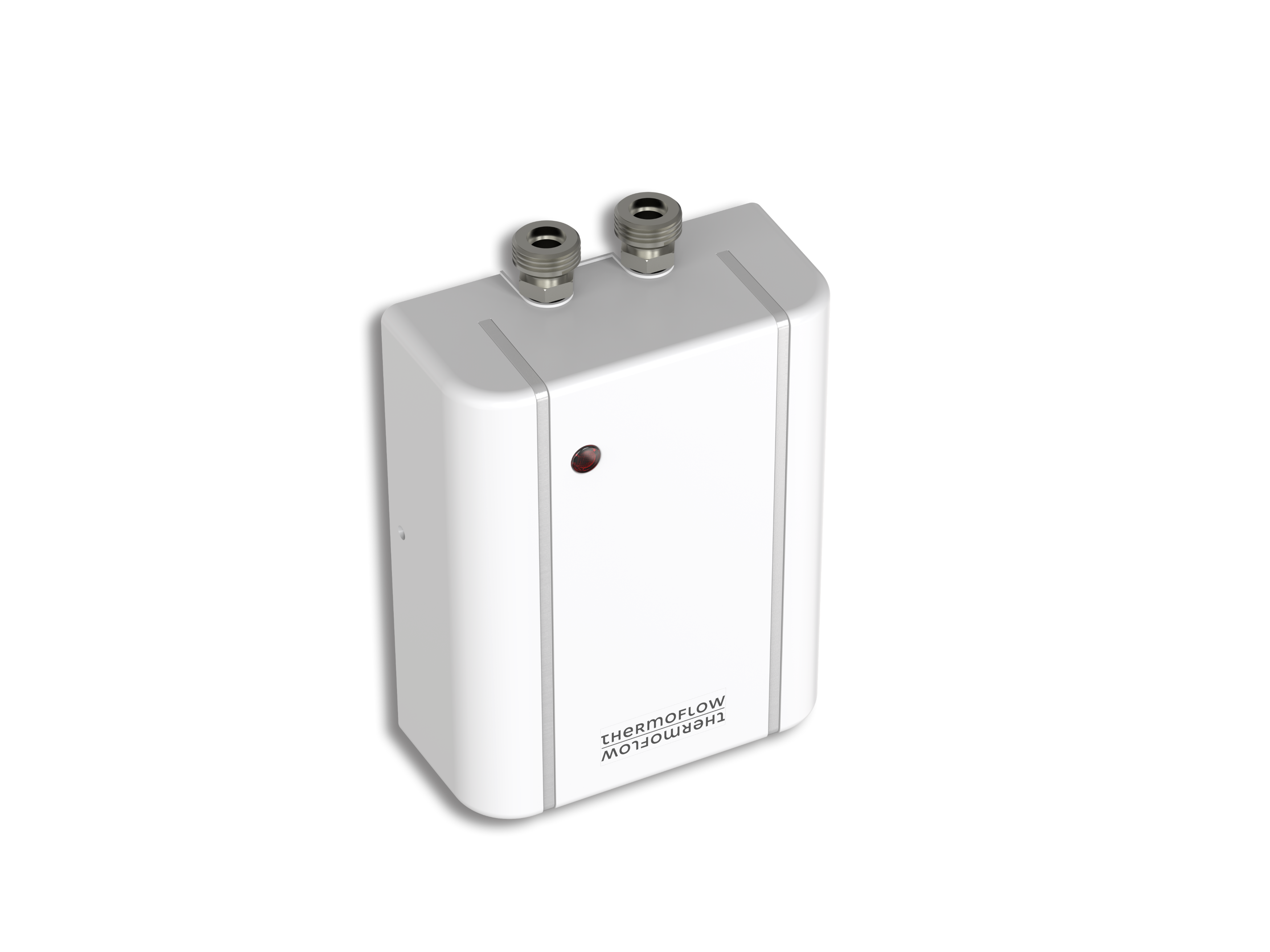

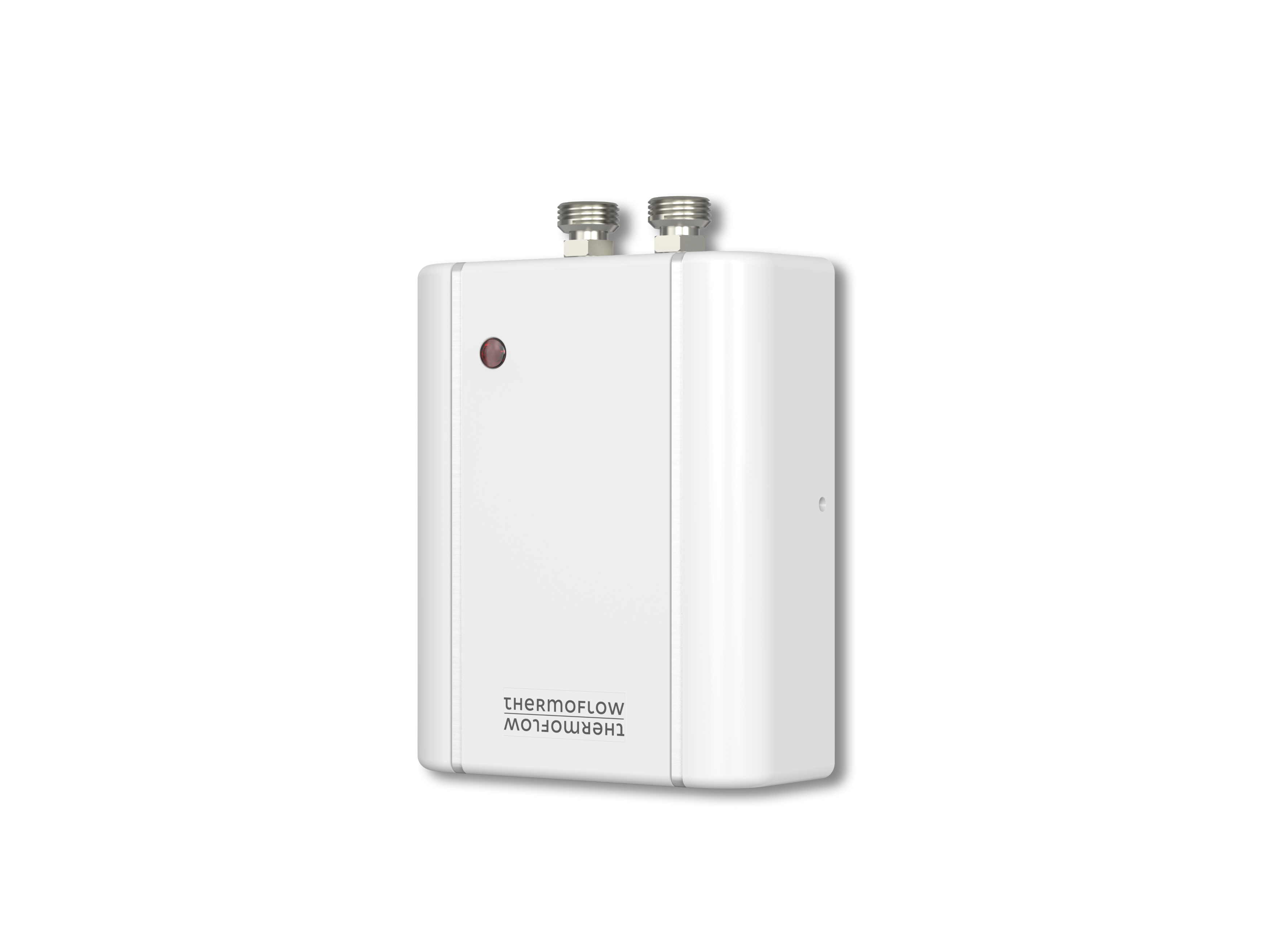

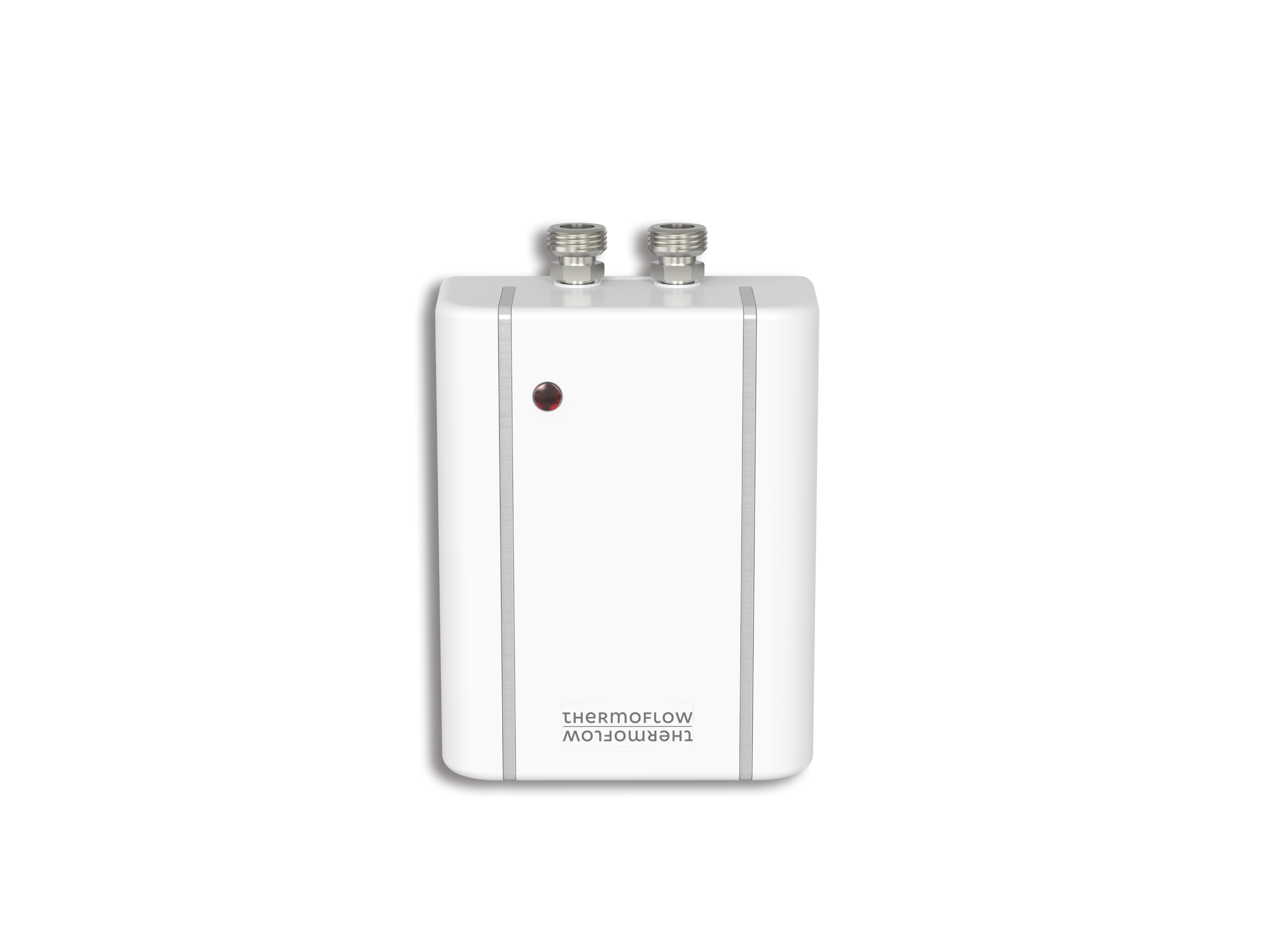

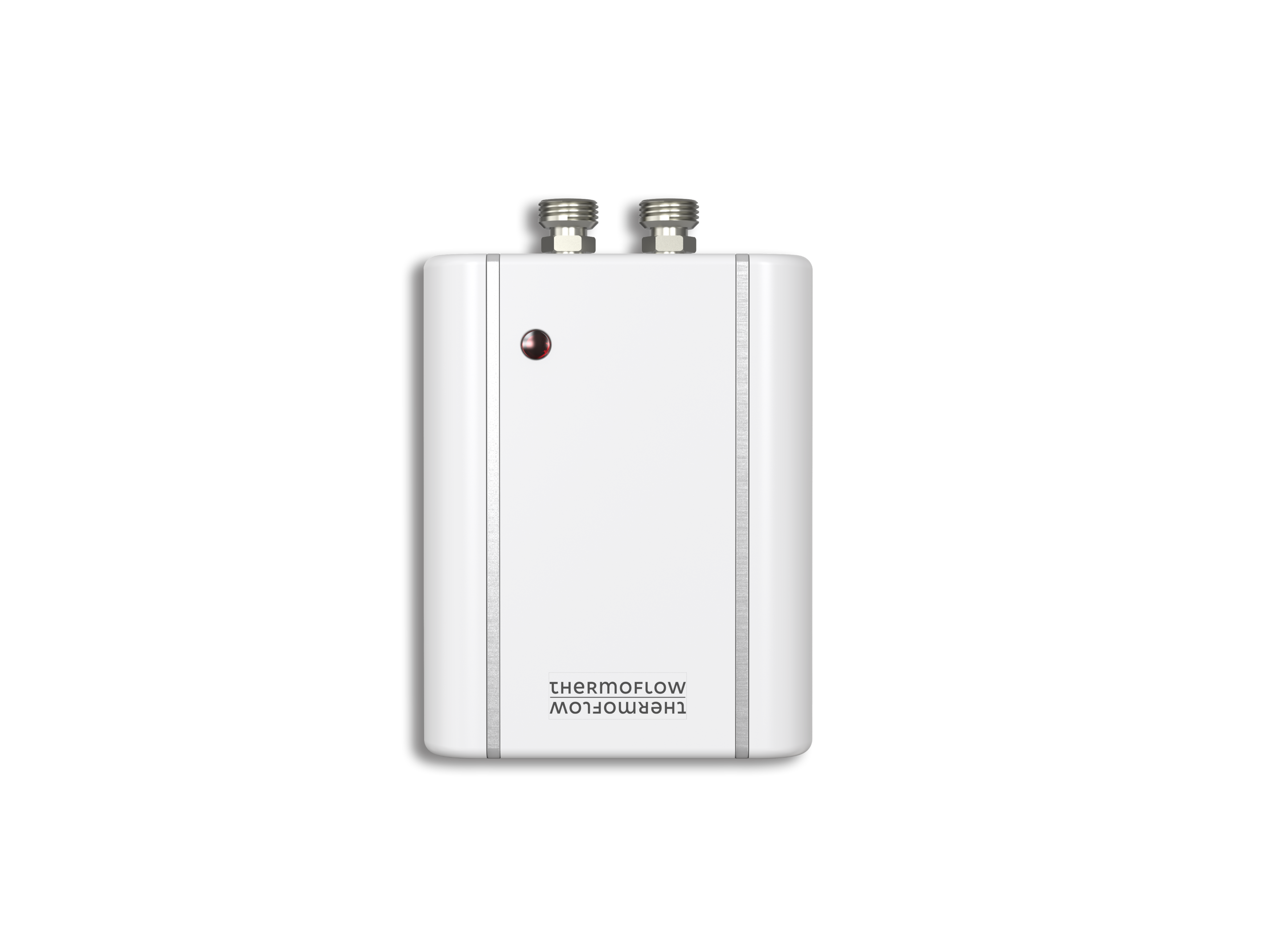

Thermoflow instantaneous water heater Small instantaneous water heater low pressure Elex 5.5 kW
%
Product number:
173689446
Manufacturer:
Thermoflow
EAN:
4260683870260
Manufacturer product number:
Elex 5.5
Product information "Thermoflow instantaneous water heater Small instantaneous water heater low pressure Elex 5.5 kW"
- Thermoflow Elex 5.5 small instantaneous water heater:
- suitable for under-table / over-table
- max. 45 °C water temperature
- Rated power: 5.5 kW
- Energy efficiency class: A
- Annual power consumption: 464 kWh
- Daily power consumption: 1.268 kWh
- Type of construction: open, with bare-iron heating system
- Water heating energy efficiency in %: 40
- Load profile: XXS
- Sound power level, indoor, in dB: 16
- Flow pressure: 0.05 MPa
- Water connection: G 3/8
- Connection support spacing: 35 mm
- Fuse protection: 23.9 A
- Voltage: 230 V ~ 50 Hz without mains plug
- Min. cable cross-section (mm²): 3 x 4.0 (not supplied)
- Switch-on quantity: 2.2 L/min.
- Standstill consumption W/h: < 0.1
- Protection class: I
- Protection class: IP25
- Hot water output (delta t 39°C): 2L/min
- Required water resistance at 15°C: less than or equal to 1300 Ohm
- Max. inlet temperature: 28°C
- Dimensions (HxWxD): 190 x 134 x 60.3 mm
- Weight 1 kg
- Nominal pressure MPa: 0
- for fixed connection, without plug, connection cable not supplied
- A low-pressure fitting is required for connection (not included in delivery)
- All special precautions to be taken when assembling, installing or maintaining the water heater are described in the operating and assembly instructions.
- Read and follow the operating and installation instructions!
- smart value 1: the information on water heater energy efficiency and annual
- electricity or fuel consumption only apply when smart control is switched on.
- smart function value: 0
- ATTENTION !
- Before commissioning, the unit must be filled with cold water!
- Venting through the cold water inlet. Open (pressureless) installation only with low-pressure fittings.
Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)
NEG Novex GmbH
Chenover Straße 5
67117 Limburgerhof, DE
06232298500
info@neg-novex.de
Achtung: Nicht für Kinder unter 3 Jahren geeignet.
Konformitätserklärung
ELEX55_CE-Erklaerung.pdf
Installations- und Montageanleitung
Elex5.5_Manual.pdf
Properties "Thermoflow instantaneous water heater Small instantaneous water heater low pressure Elex 5.5 kW"
| Breite: | 13 |
|---|---|
| Modellname: | Elex 5,5 |
