Thermoflow electronic small instantaneous water heater 3,5 KW + low pressure fitting
Product number:
57192453
Manufacturer:
Thermoflow
EAN:
4260458242742
Manufacturer product number:
Elex 3.5 + Armatur
Product information "Thermoflow electronic small instantaneous water heater 3,5 KW + low pressure fitting"

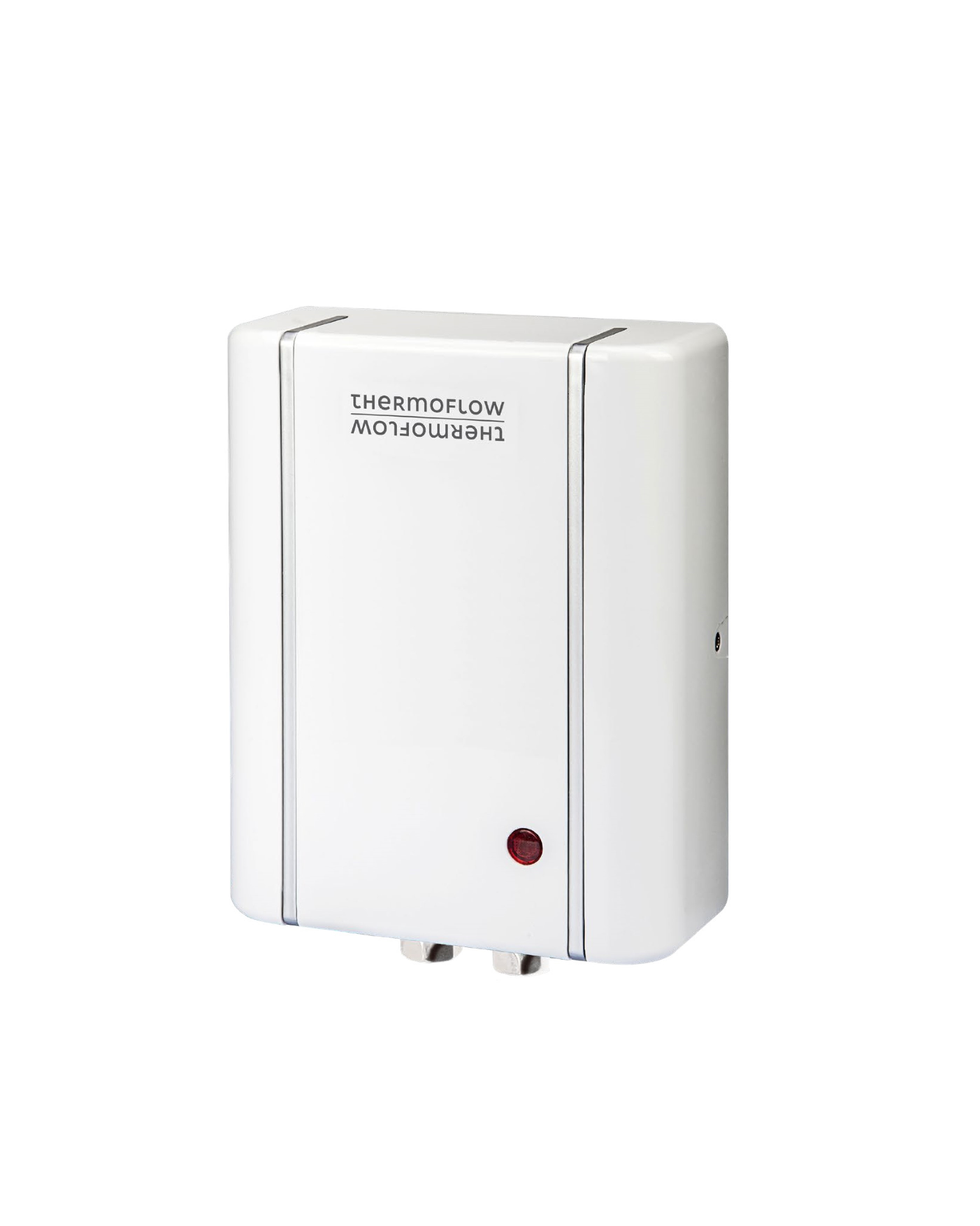

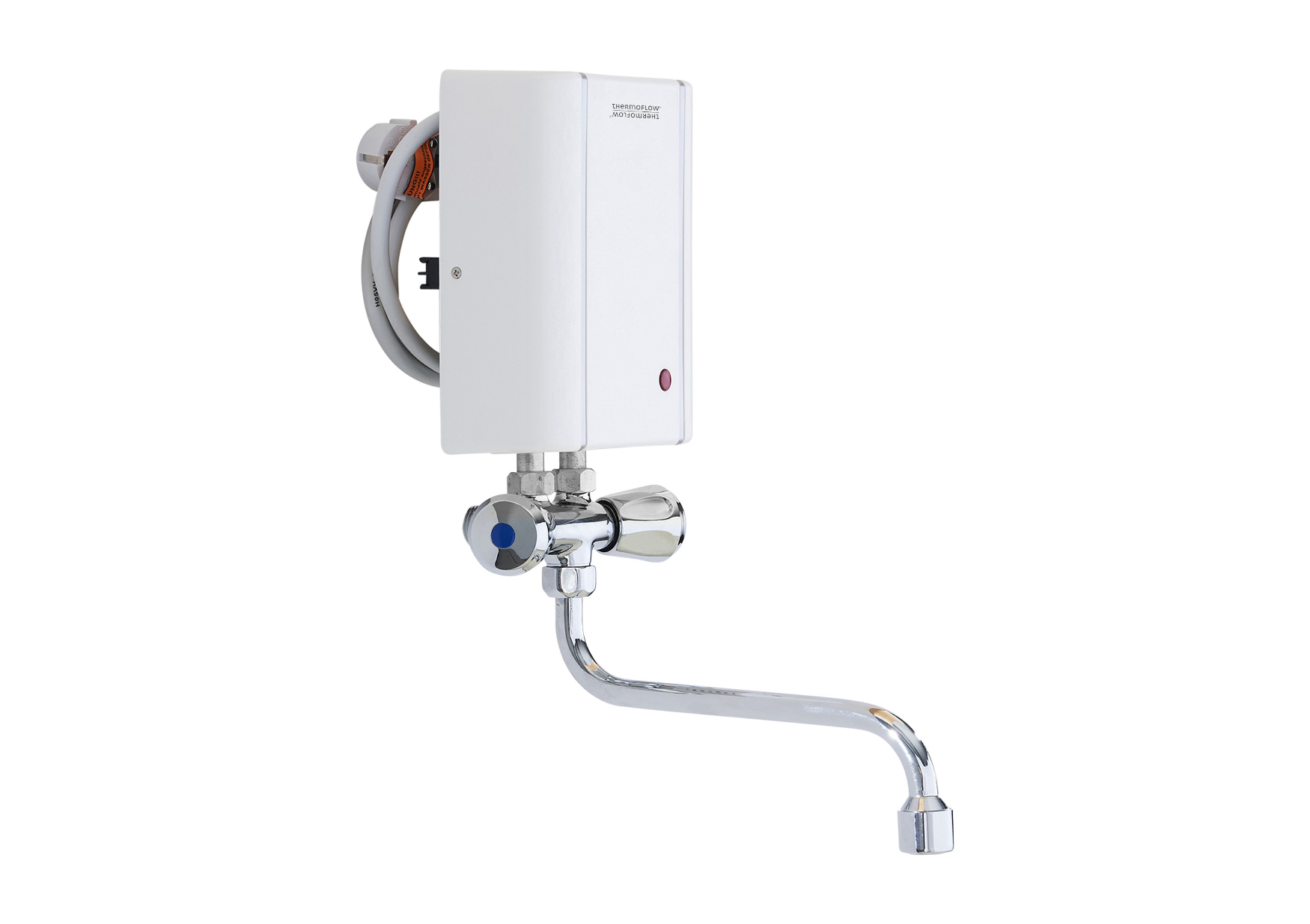

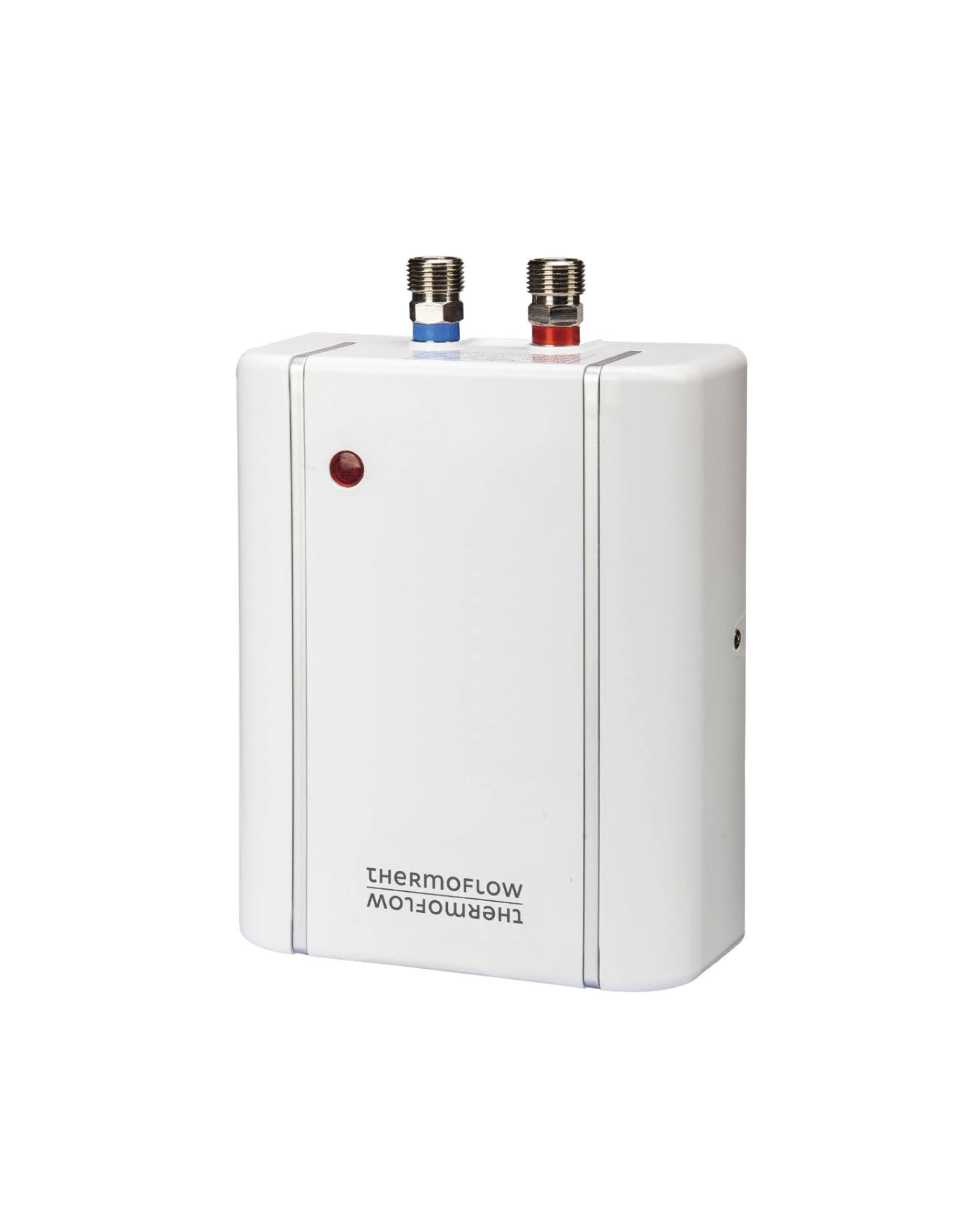

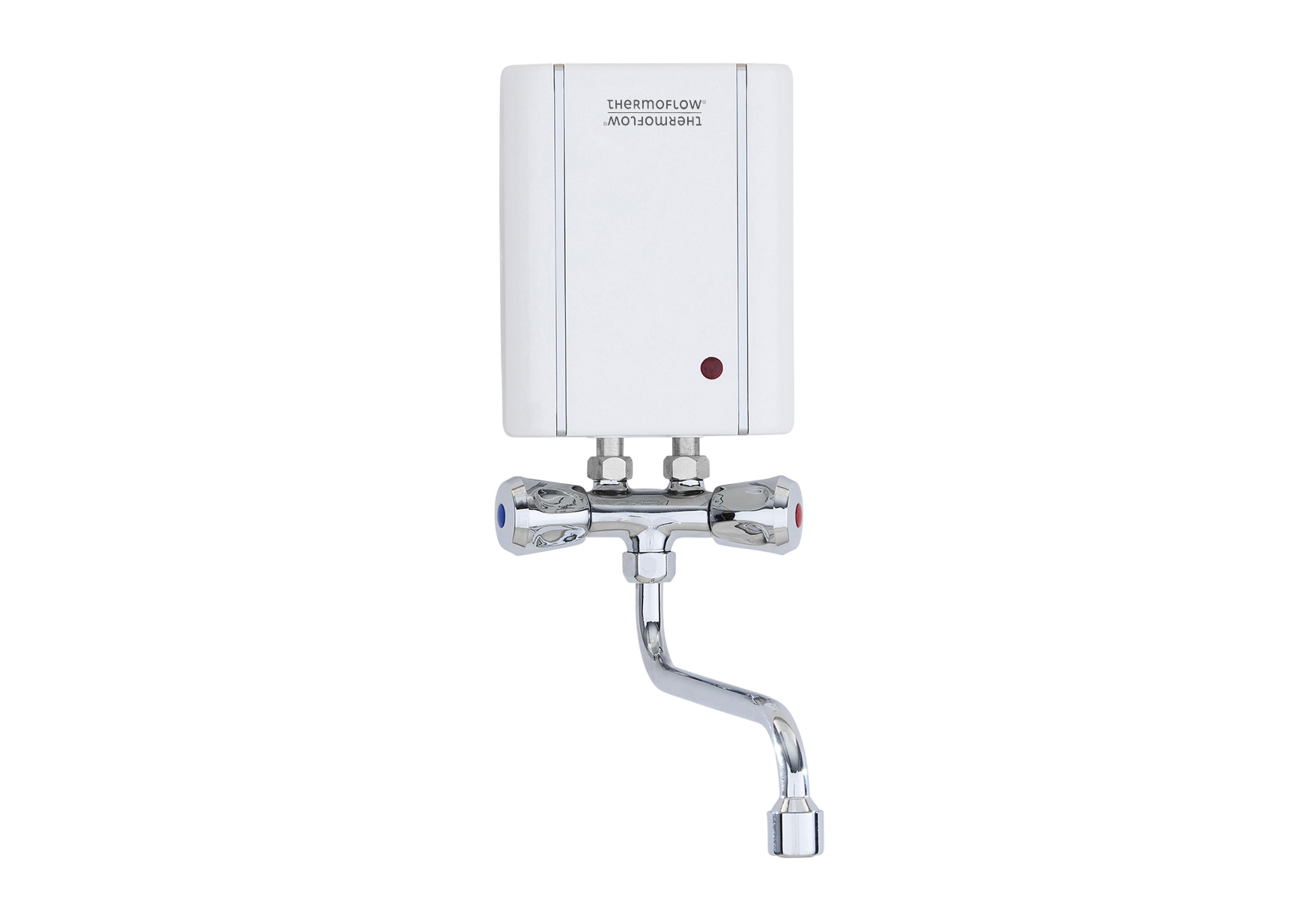

- Thermoflow Elex 3.5 small instantaneous water heater SET:
- Nominal power: 3.5 kW
- Energy efficiency class: A
- Annual electricity consumption: 461 kWh
- Daily electricity consumption: 1.263 kWh
- Design: open, with blank resistance heating system
- Flow pressure: 0.05 MPa
- Water connection: G 3/8
- Connection post spacing: 35 mm
- Fuse: 15.2 A.
- Voltage: 230 V ~ 50 Hz
- Min. Cable cross-section (mm²): 3 x 1.5
- Switch-on volume: 1.2 L / min.
- Temperature setting of the temperature controller (ex works): 40 ° C
- max. inlet temperature: 28 ° C
- Dimensions (HxWxD): 18 x 13 x 6.8 cm
- Weight 1.6 kg

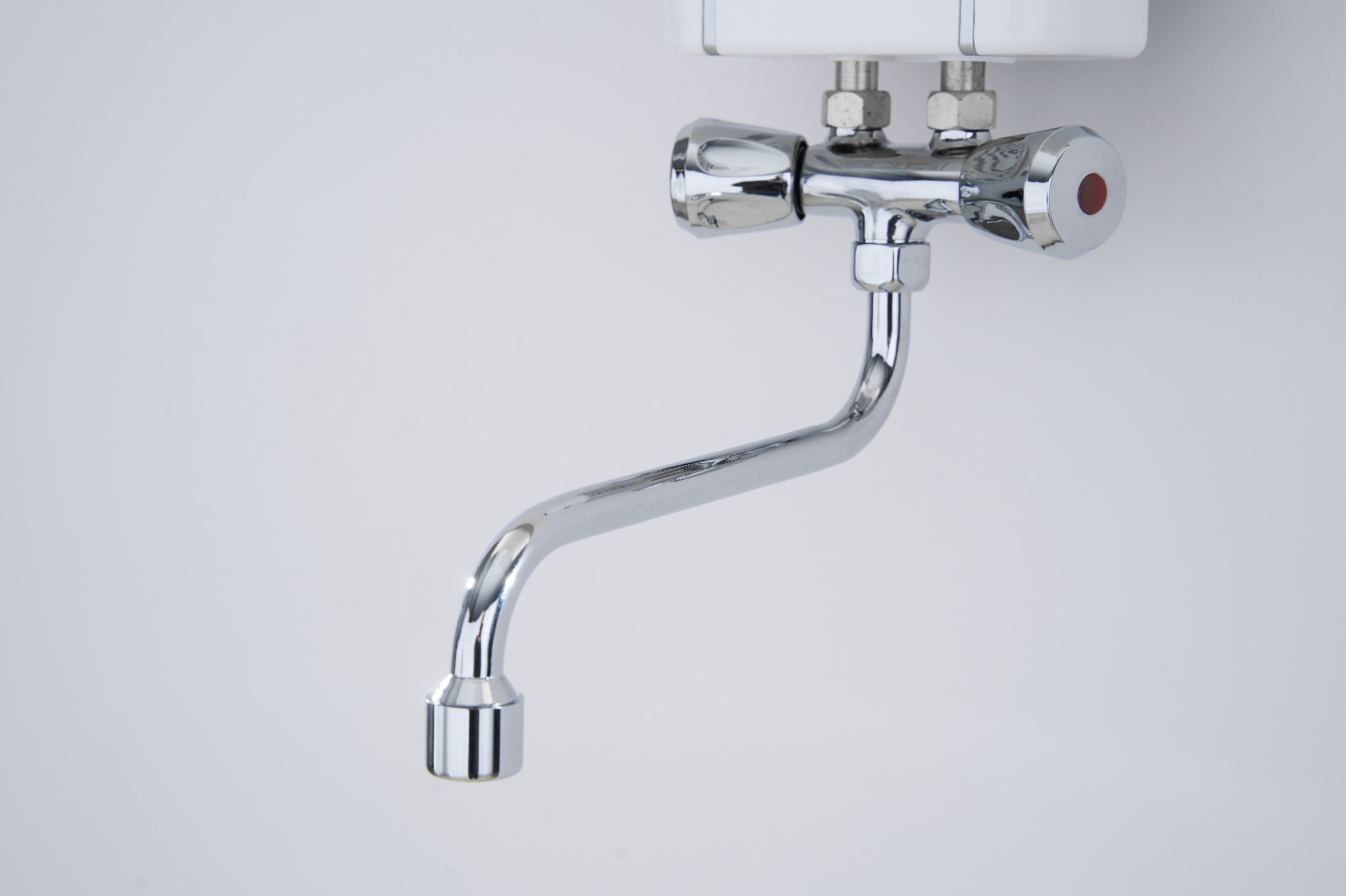

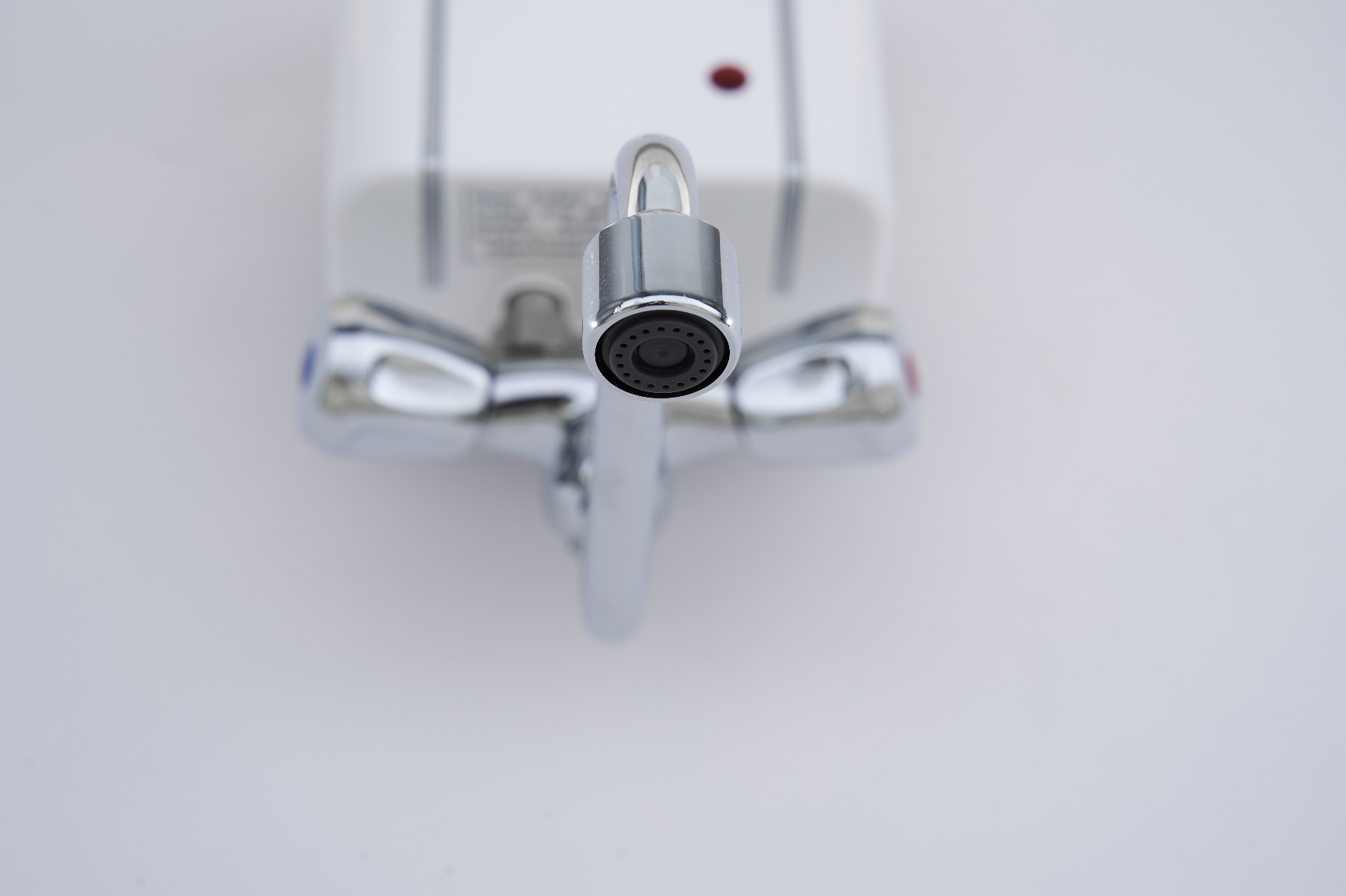

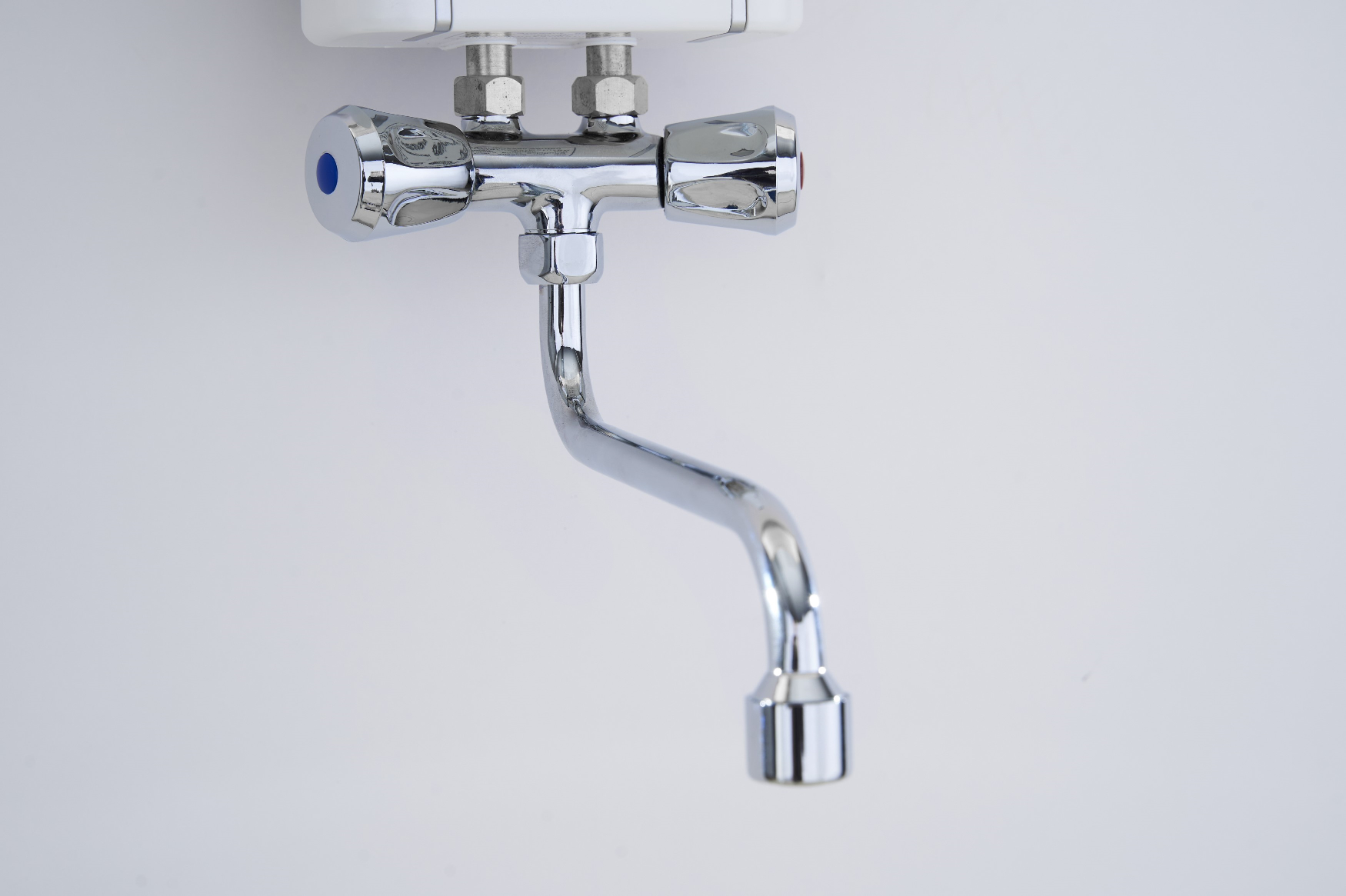

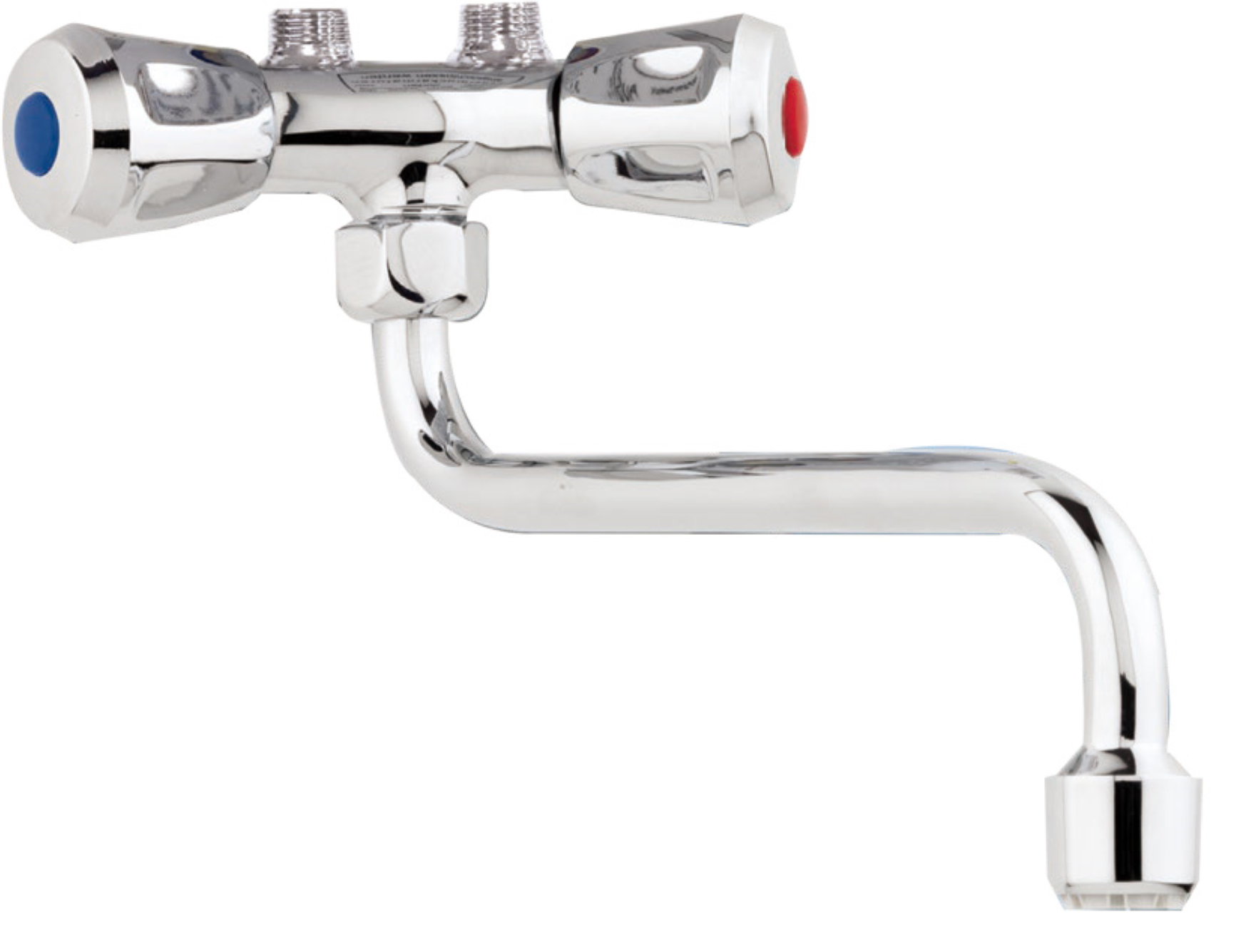

- The low-pressure fitting is included in the scope of delivery
- Mehr zu diesem Ausgangstext
- Für weitere Übersetzungsinformationen ist ein Ausgangstext erforderlich
- Feedback geben
- Seitenleisten
Information on the manufacturer (information obligations under the GPSR Product Safety Regulation)
Achtung: Nicht für Kinder unter 3 Jahren geeignet.
Konformitätserklärung
Elex3.5Combi_CE.pdf
Installations- und Montageanleitung
Elex3.5Arm_Manual.pdf
Properties "Thermoflow electronic small instantaneous water heater 3,5 KW + low pressure fitting"
| Breite: | 13 |
|---|---|
| Modellname: | Elex 3,5 ARM |
